R167139360 Bosch Rexroth

REXROTH R167139360 ball runner block resist cr

Name: R167139360 REXROTH
Brand: REXROTH
SKU: 113423-en-gbp
Price: 575.83 GBP
Availability: InStock

KWC-035-BNS-C0-H-2

£575.83

available with 7 to 15 days delivery to United States

Find your match! Click to explore guide rails that pair with this runner block

Specifications

Area of application: For high torsional moments on rails
The same high load ratings in all four main directions of loading
Excellent dynamic characteristics
Low noise level and optimum travel behavior
High torque capacity

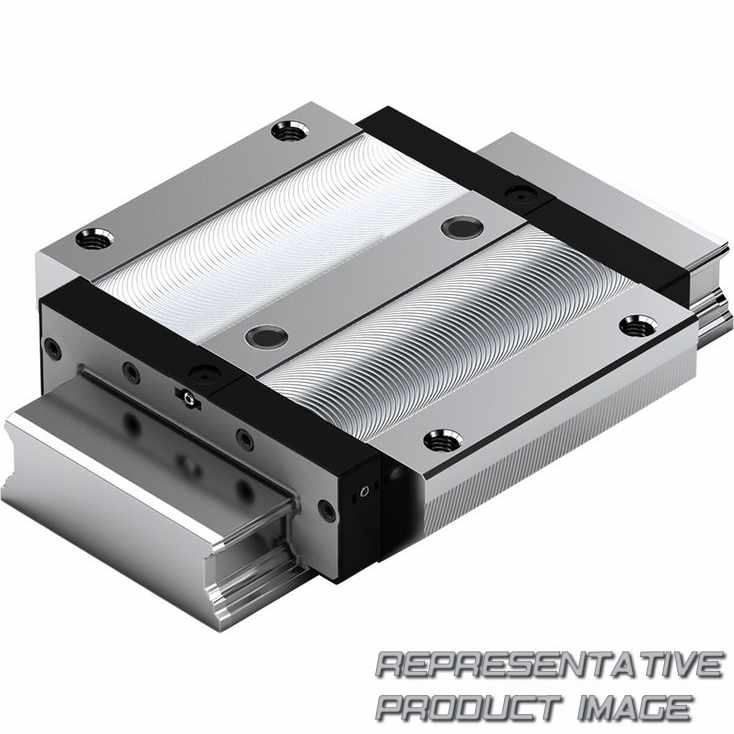

Ball runner block Resist CR with corrosion-resistant coating, matt silver finish, hard chrome plated

Series (R1671)	Wide, normal, standard height R1671...6
Size (3)	35/90 size
Preload class (9)	C0 Without preload (clearance)

Accuracy class (3)	H Hight Accuracy Level
Seals (60)	SS Standard seal without ball chain

Dimensions
Technical data

^a) For O-ring
Size 35/90: Ø 6 · 1.5 (mm)
Open lube port if necessary (see general technical notes and information in the "Maintenance" section).
^b) Recommended position for pin holes (dimension E₄ see general technical notes and information in the "Installation" section).
Rough-drilled holes may be present here from manufacturing.
These may be bored open.
^c) Lube nipple, size 35/90:
Hydraulic-type lube nipple DIN 71412-B M6x8, B₂ = 16 mm
When using different lube nipples, pay attention to the screw-in depth of 8 mm!
The lube nipple is included in the scope of delivery (not installed). Connection is possible on all sides.
^d) Sealing plugs may be present here from manufacturing. Remove these prior to mounting.

A	162	mm
A₂	90	mm
B	142
E₁	144	mm
E₈	79	mm
E₉	6.80	mm
H	50	mm
H₂	31.85	mm
K₂	24.80	mm
K₄	9	mm
N₂	12	mm
S₁	8.40	mm
ØS₅	9	mm
T	80	mm

A₁	81	mm
A₃	36	mm
B₁	113.60	mm
E₂	80	mm
E_8.1	116	mm
E_9.1	29.90	mm
H₁	42.50	mm
K₁	22.80	mm
K₃	9	mm
N₁	14	mm
N₆	20.5 mm ±0.5
S₂	M10
S₉	M3x5
V₁	8	mm

a_max (If F_comb > 2.8 • F_pr : a_max = 50 m/s²)	250	m/s²
m	3.70	kg
Operating conditions	Operating conditions
Permissible ambient temperature (min ... max) (Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. )	-10 °C ... +80 °C
