R165359310 Bosch Rexroth

REXROTH R165359310 ball runner block carbon steel

Name: R165359310 REXROTH
Brand: REXROTH
SKU: 111446-en-gbp
Price: 612.42 GBP
Availability: InStock

KWC-055-FLS-C0-H-2

£612.42

1 pcs. with 1 to 3 days delivery to United States

Find your match! Click to explore guide rails that pair with this runner block

Specifications

Area of application: For the most demanding rigidity requirements
Heavy-duty Ball Runner Block for heavy machine construction with extremely high load-bearing capacity
Top rigidity in all load directions
Improved rigidity under lift-off and side loading conditions due to two additional mounting screw holes at the center of the Ball Runner Block
High torque capacity

Ball runner block CS, made of Carbon steel

Series (R1653)	Flange, long, standard height R1653...1
Size (5)	55 size
Preload class (9)	C0 Without preload (clearance)

Accuracy class (3)	H Hight Accuracy Level
Seals (10)	SS Standard seal without ball chain

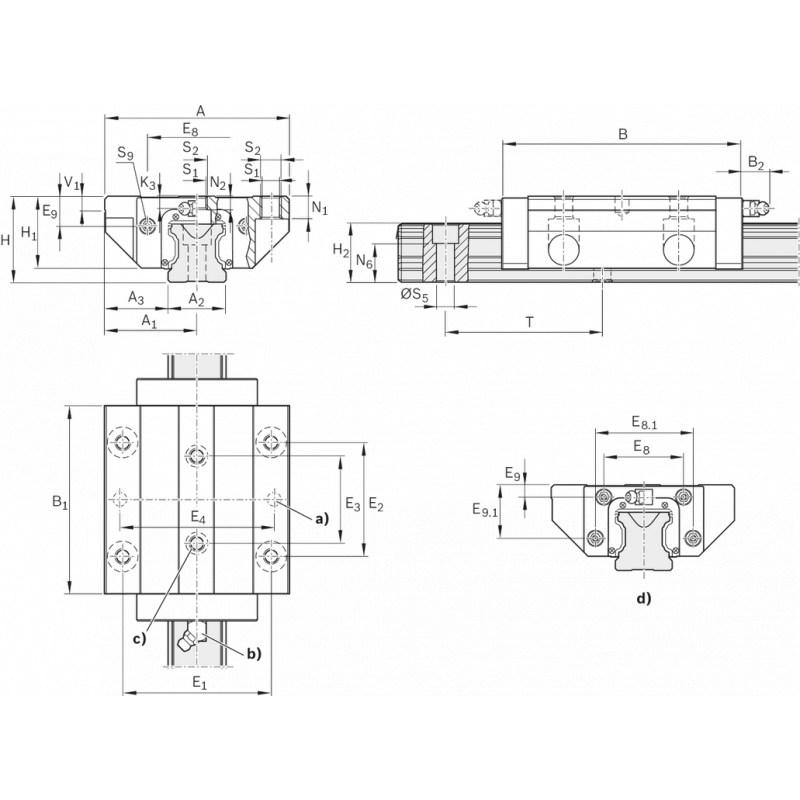

Dimensions
Technical data

^a) Recommended position for pin holes (dimension E₄ see general technical notes and information in the "Installation" section).
Rough-drilled holes may be present here from manufacturing. These may be bored open.
^b) Lube nipple, size 55:
Hydraulic-type lube nipple DIN 71412-B M6x8, B₂ = 16 mm
Lube nipple, size 65:
Hydraulic-type lube nipple DIN 71412-B M8x1x8, B₂ = 16 mm
When using different lube nipples, pay attention to the screw-in depth of 8 mm!
The lube nipple is included in the scope of delivery (not installed).
Connection is possible on end-face.
^c) Sealing plugs may be present here from manufacturing. Remove these prior to mounting.
^d) Size 65

B₁	155.50	mm
E₂	95	mm
A₁	70	mm
A₃	43.50	mm
E₃	70	mm
E_8.1	-
E_9.1	-
H₁	57	mm
Dimension H₂ without cover strip	47.85	mm
N₁	18	mm
N₆	29 mm ±0.5
S₂	M14
S₉	M5x8
V₁	12	mm

E₁	116	mm
A	140	mm
A₂	53	mm
B	199 mm +0.5
E₈	80	mm
E₉	22.30	mm
H	70	mm
Dimension H₂ with cover strip	48.15	mm
K₃	9	mm
N₂	13.50	mm
S₁	12.40	mm
ØS₅	16	mm
T	120	mm

a_max (If F_comb > 2.8 • F_pr : a_max = 50 m/s²)	250	m/s²
m	7.50	kg
Operating conditions	Operating conditions
Permissible ambient temperature (min ... max) (Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. )	-10 °C ... +80 °C
