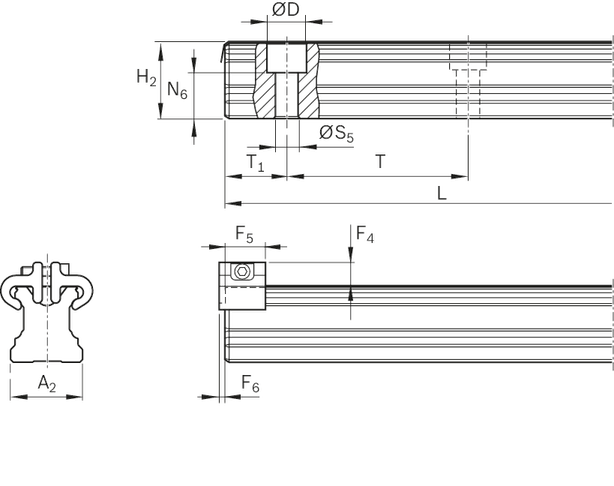

| F4 With cover strip | 14 | mm | |
| F6 | 3.20 | mm | |
| Dimension H2 with cover strip (with cover strip 0.3 mm) | 48.15 | mm | |
| ØS5 | 16 | mm | |
| T1 min | 20 | mm | |
| T1 max | 102 | mm |
| F5 | 17 | mm | |
| D | 24 | mm | |
| N6 | 29 mm ±0.5 | ||
| T | 120 | mm | |
| T1 s (Preferred dimension T1S Recommended with tolerances ± 0.75. ) | 58 | mm | |
| nB | 32 |
| m | 16.20 | kg | |
| Operating conditions | Operating conditions | ||
| Permissible ambient temperature (min ... max) (Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. ) | 0 °C ... +80 °C |
| Lmax | 3,836 | mm | |
| Size | 55 |
