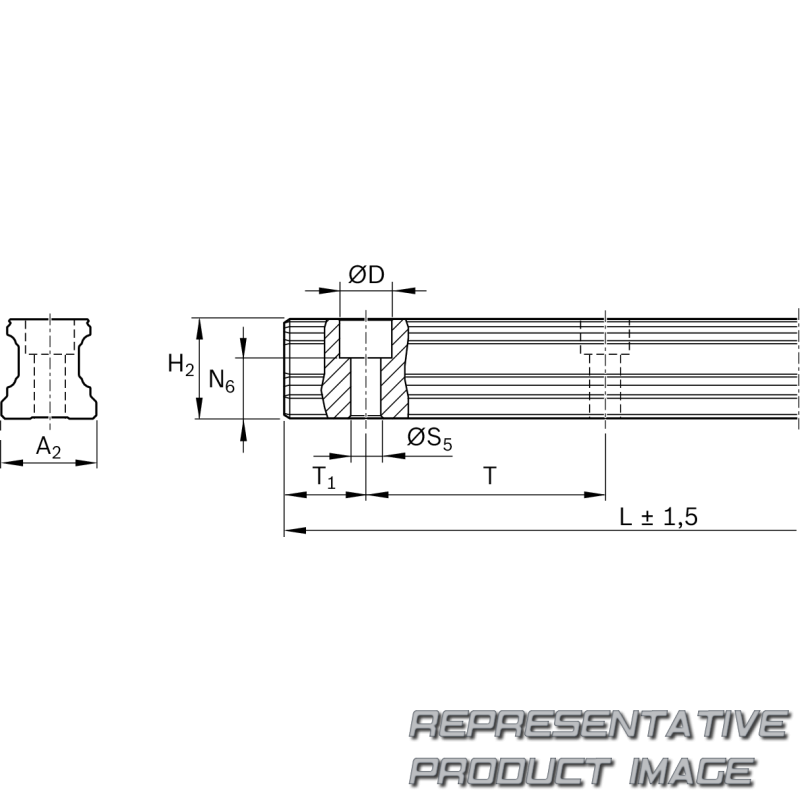

| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T1S with tolerances ± 0.75 recommended. | ||
| Dimension T1 min (profiled rail systems) | 10 mm | ||
| Dimension T (profiled rail systems) | 60 mm | ||
| Dimension N6 tolerance (profiled rail systems) | |||
| Dimension H2 without cover strip (profiled rail systems) | 24.25 mm | ||
| Dimension A2 (profiled rail systems) | 23 mm | ||
| Pitch T guide rail | 60 mm | ||
| Version | Ball rail system | ||
| Number of sections | One-piece | ||
| Permissible ambient temperature | 0 °C ... + 80 °C | ||
| Max. length Lmax | 3836 mm | ||
| Guide rail mounting | For bolting from above | ||
| Material (profiled rail systems) | Hard chrome plated | ||
| Nominal size | 25 mm |
| Dimension T1 s (profiled rail systems) | 28 mm | ||
| Dimension T1 max (profiled rail systems) | 50 mm | ||
| Dimension S5 (profiled rail system) | 7 mm | ||
| Dimension N6 (profiled rail systems) | 15.2 mm | ||
| Dimension d | 11 mm | ||
| Recommended rail length (formula) | L = nB • T ‒ 4 mm | ||
| Number of holes nB (profiled rail systems) | 64 | ||
| Product information | Uncoated end faces | ||
| Footnote permissible ambient temperature (min ... max) | 100°C admissible for short time. For operation at negative temperatures, please consult us. | ||
| Mass m (kg/m) | 3.2 kg/m | ||
| Guide rail cover | Plastic caps | ||
| Accuracy class | H - Highly accurate | ||
| Format | SNS - Standard guide rail |
