R162369360 Bosch Rexroth

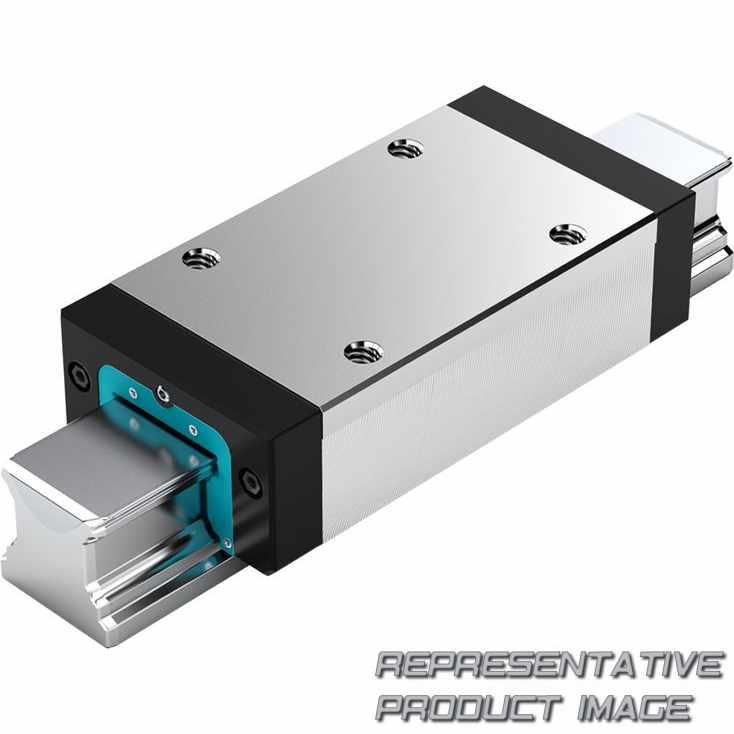

REXROTH R162369360 ball runner block carbon steel

Name: R162369360 REXROTH
Brand: REXROTH
SKU: 112584-en-gbp
Price: 907.89 GBP
Availability: InStock

KWC-065-SLS-C0-H-2

£907.89 ~~£998.60~~ -9%

available with 7 to 15 days delivery to United States

Find your match! Click to explore guide rails that pair with this runner block

Specifications

Area of application: For restricted space in transverse direction
Heavy-duty Ball Runner Block for heavy machine construction with extremely high load-bearing capacity
Top rigidity in all load directions
High torque capacity
Steel Ball Runner Block body with corrosion-resistant coating, matt silver finish, hard chrome plated

Ball runner block Resist CR with corrosion-resistant coating, matt silver finish, hard chrome plated

Series (R1623)	Slimline, long, standard height R1623...1
Size (6)	65 size
Preload class (9)	C0 Without preload (clearance)

Accuracy class (3)	H Hight Accuracy Level
Seals (60)	SS standard seal

Dimensions
Technical data

^a) Lube nipple, size 55:
Hydraulic-type lube nipple DIN 71412-B M6x8, B₂ = 16 mm
Lube nipple, size 65:
Hydraulic-type lube nipple DIN 71412-B M8x1x8, B₂ = 16 mm
When using different lube nipples, pay attention to the screw-in depth of 8 mm!
The lube nipple is included in the scope of delivery (not installed).
Connection is possible on end-face.
^b) Size 65

A	126	mm
A₂	63	mm
B	243 mm +0.5
E₁	76	mm
E₈	76	mm
E₉	11	mm
H	90	mm
Dimension H₂ with cover strip	60.15	mm
K₃	16	mm
N₆	38.5 mm ±0.5
ØS₅	18	mm
T	150	mm

A₁	63	mm
A₃	31.50	mm
B₁	194.60	mm
E₂	120	mm
E_8.1	100	mm
E_9.1	53.50	mm
H₁	76	mm
Dimension H₂ without cover strip	59.85	mm
N₃	21	mm
S₂	M16
S₉	M4x7
V₁	15	mm

a_max (If F_comb > 2.8 • F_pr : a_max = 50 m/s²)	250	m/s²
m	9.80	kg
Operating conditions	Operating conditions
Permissible ambient temperature (min ... max) (Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. )	-10 °C ... +80 °C
