R162251360 Bosch Rexroth

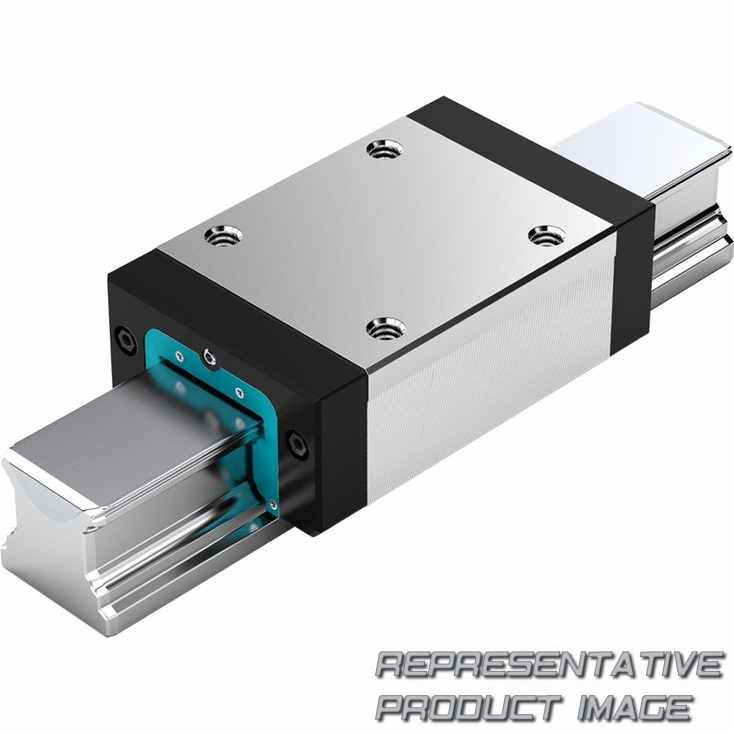

REXROTH R162251360 ball runner block resist cr

Name: R162251360 REXROTH
Brand: REXROTH
SKU: 112154-en-gbp
Price: 508.24 GBP
Availability: InStock

KWC-055-SNS-C1-H-2

£508.24

available with 7 to 15 days delivery to United States

Find your match! Click to explore guide rails that pair with this runner block

Specifications

Area of application: For restricted space in transverse direction
Heavy-duty Ball Runner Block for heavy machine construction with extremely high load-bearing capacity
Top rigidity in all load directions
High torque capacity
Steel Ball Runner Block body with corrosion-resistant coating, matt silver finish, hard chrome plated

Ball runner block Resist CR with corrosion-resistant coating, matt silver finish, hard chrome plated

Series (R1622)	Slimline, normal, standard height R1622
Size (5)	55 size
Preload class (1)	C1 Moderate preload

Accuracy class (3)	H Hight Accuracy Level
Seals (60)	SS Standard seal without ball chain

Dimensions
Technical data

^a) Lube nipple, size 55:
Hydraulic-type lube nipple DIN 71412-B M6x8, B₂ = 16 mm
Lube nipple, size 65:
Hydraulic-type lube nipple DIN 71412-B M8x1x8, B₂ = 16 mm
When using different lube nipples, pay attention to the screw-in depth of 8 mm!
The lube nipple is included in the scope of delivery (not installed).
Connection is possible on end-face.
^b) Size 65

A₃	23.50	mm
A	100	mm
A₂	53	mm
E₁	75	mm
E₈	80	mm
E₉	22.30	mm
H	70	mm
Dimension H₂ with cover strip	48.15	mm
K₃	9	mm
N₆	29 mm ±0.5
ØS₅	16	mm
T	120	mm

B	159 mm +0.5
A₁	50	mm
B₁	115.50	mm
E₂	75	mm
E_8.1	-
E_9.1	-
H₁	57	mm
Dimension H₂ without cover strip	47.85	mm
N₃	19	mm
S₂	M12
S₉	M5x8
V₁	12	mm

m (Without friction of seal)	0,002 ... 0,003
v_max	3	m/s
Operating conditions	Operating conditions
Permissible ambient temperature (min ... max) (Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. )	-10 °C ... +80 °C
