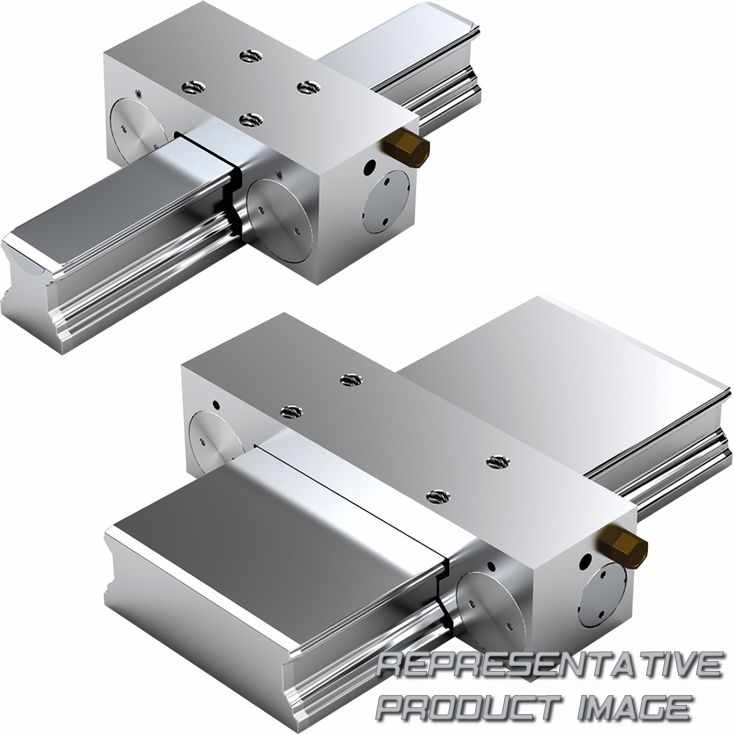

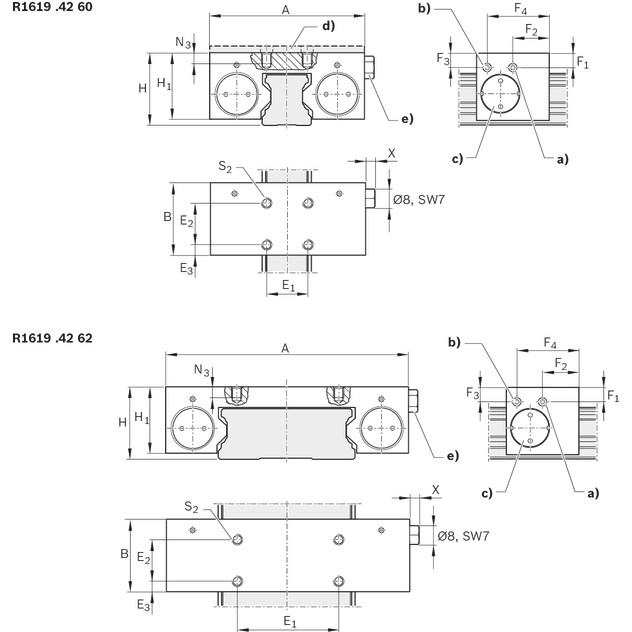

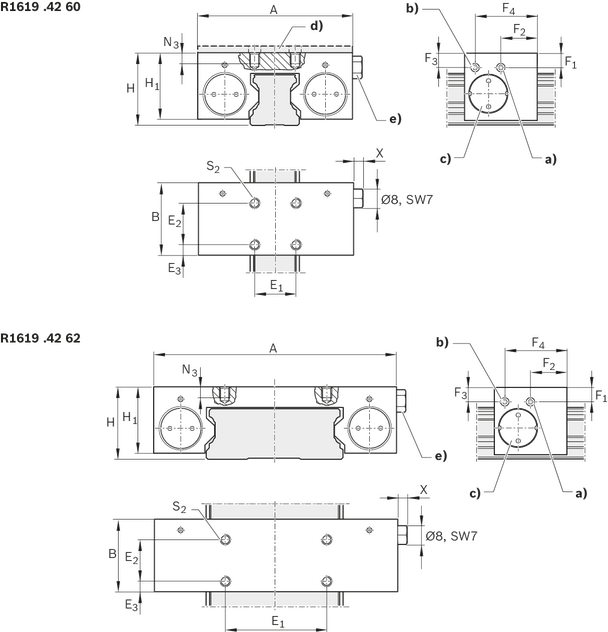

a)
Air connection*) M5 on two sides for release pressure
b)
Connection*) M5 on two sides for air filter
c)
Adjusting screw on two sides
d)
Spacer plate (accessory) for MK
e)
Air filter: connection M5 (possible on two sides)
*) Only one connection needed.
All connections sealed upon delivery.
| E1 | 50 | mm | |
| B | 35 | ||
| F1 | 7 | mm | |
| F3 | 9 | mm | |
| H | 35 | mm | |
| N3 | 8 | mm | |
| X | 5.50 | mm |
| A | 120 | mm | |
| E3 | 5 | mm | |
| F2 | 17.50 | mm | |
| F4 | 30 | mm | |
| H1 (Ball runner block .H. (...high...) Spacer plate necessary.) | 32.50 | mm | |
| S2 | M6 | ||
| E2 | 20 | mm |
| Spring energy holding force with standard air port (Holding force at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). ) | 1,200 | N | |
| Max. pneumatic operating pressure | 8 | bar | |
| Operating conditions | Operating conditions | ||
| Permissible ambient temperature (min ... max) | 0 °C ... +70 °C |
| Air consumption (normal liter) standard air port | 0.02 | dm³/stroke | |
| Mass | 0.62 | kg | |
| Size | 25/70 |
