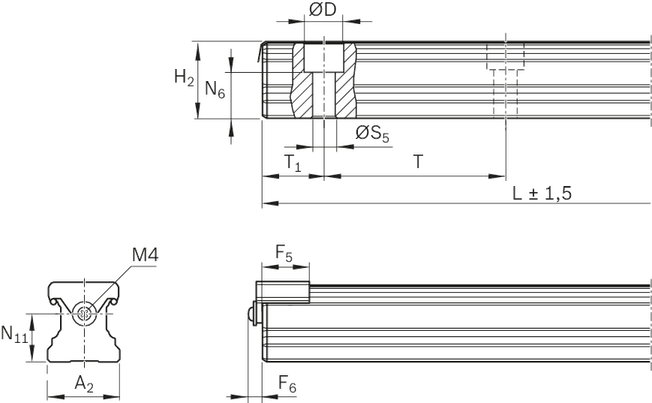

| D | 11 | mm | |
| F6 | 6.50 | mm | |
| N6 | 15.2 mm ±0.5 | ||
| ØS5 | 7 | mm | |
| T1 min (In case of dimensions less than T1min. a front thread is not possible. Secure the cover strip. ) | 13 | mm | |
| T1 max | 50 | mm |
| F5 | 15.20 | mm | |
| Dimension H2 with cover strip (with cover strip 0.2 mm) | 24.45 | mm | |
| N11 | 15 | mm | |
| T | 60 | mm | |
| T1 s | 28 | mm | |
| nB | 64 |
| m | 3.20 | kg | |
| Operating conditions | Operating conditions | ||
| Permissible ambient temperature (min ... max) (Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. ) | 0 °C ... +80 °C |
| Lmax (For accuracy classes N, H and P, one-piece Ball Guide Rail lengths are available on request for size 20 - 25 up to 5816 mm and for size 30 - 35 up to 5836 mm. ) | 3,836 | mm | |
| Size | 25 |
