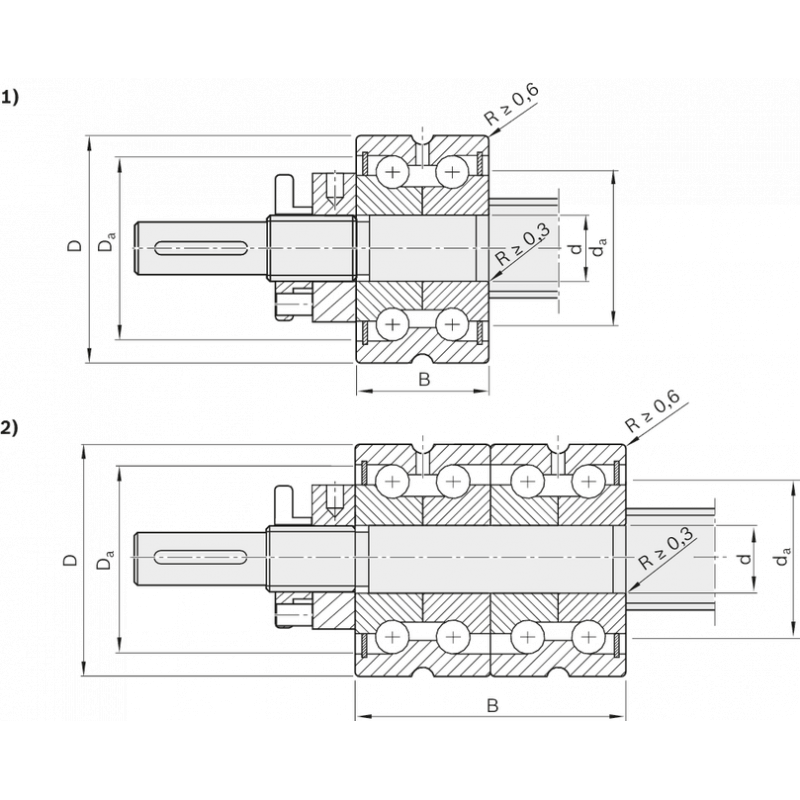

1)
LGN-B-…with slotted nut NMA
2)
LGN-C-…with slotted nut NMA
| Size | 39 x 5R/10R | ||
| Dimensions | 62 mm -0.01 | ||
| Connection dimensions | 50 | J | |
| Connection dimensions | 40 | J |
| Dimensions | 30 mm -0.005 | ||
| Dimensions | 56 mm -0.5 | ||
| Connection dimensions | 53 | J | |
| Connection dimensions | 49 | J |
| Size | 39 x 5R/10R | ||
| C0 | 127,000 | N | |
| Rfb | 1,500 | N/μm | |
| nmax | 2,200 | rpm |
| C | 47,500 | N | |
| MRb | 0.75 | Nm | |
| Rkl | 620 | Nm/mrad | |
| Mass | 0.98 | kg |
