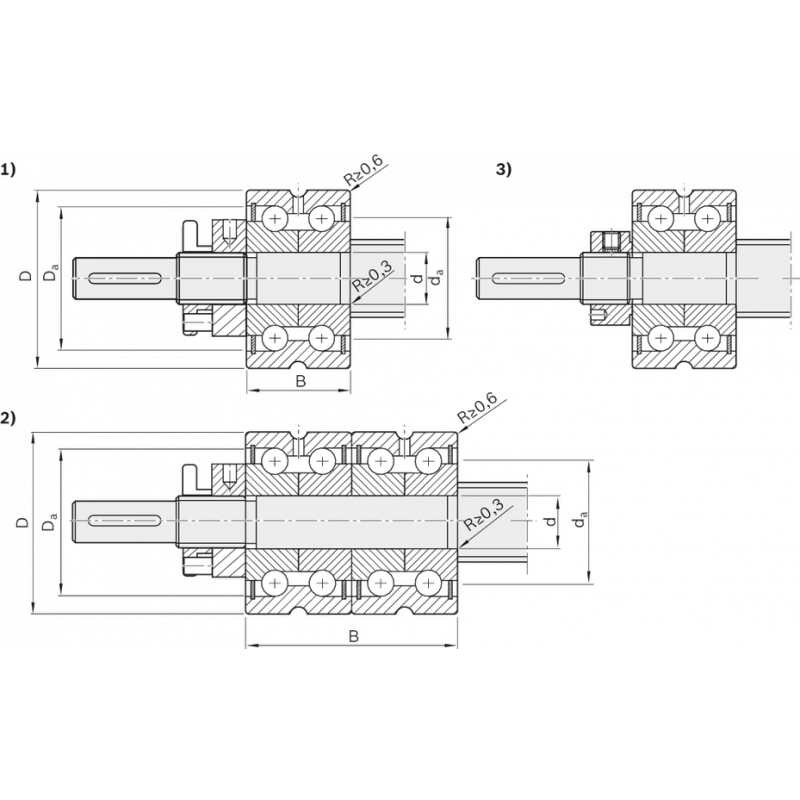

1)
LGN-B-…with slotted nut NMA, LGN-A-…with slotted nut NMA
2)
LGN-C-…with slotted nut NMA
3)
LGN-B-…with slotted nut NMZ
| Size | 40 x 10/12/16/20/25/30/40 | ||
| Dimensions | 57 mm -0.01 | ||
| Connection dimensions | 45 | J | |
| Connection dimensions | 32 | J |
| Dimensions | 25 mm -0.005 | ||
| Dimensions | 56 mm -0.05 | ||
| Connection dimensions | 48 | J | |
| Connection dimensions | 44 | J |
| Size | 40 x 10/12/16/20/25/30/40 | ||
| C0 (Load on bearing (see general technical notes and information for bearings, “Project planning notes”) ) | 111,000 | N | |
| Rfb | 1,300 | N/μm | |
| nmax | 2,600 | rpm |
| C (Load on bearing (see general technical notes and information for bearings, “Project planning notes”) ) | 44,500 | N | |
| MRb | 0.60 | Nm | |
| Rkl | 450 | Nm/mrad | |
| Mass | 0.84 | kg |
