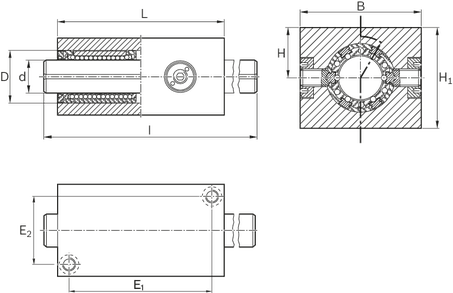

| D | 40 | mm | |
| E1 | 110 | mm | |
| H | 30 | mm | |
| H1 | 60 | mm |
| B | 74 | ||
| E2 | 54 | mm | |
| Tolerance for H (Two or more Linear Sets on one shaft are machined to the same dimension H while installed. Dimension H is reduced by 0.5 mm. ) | + 13 - 22 |
||
| L | 130 | mm |
| amax | 150 | m/s² | |
| m | 3.50 | kg | |
| Operating conditions | Operating conditions |
| vmax | 3 | m/s | |
| m (shaft) | 3.80 | kg/m | |
| Permissible ambient temperature (min ... max) | -10 °C ... +80 °C |
