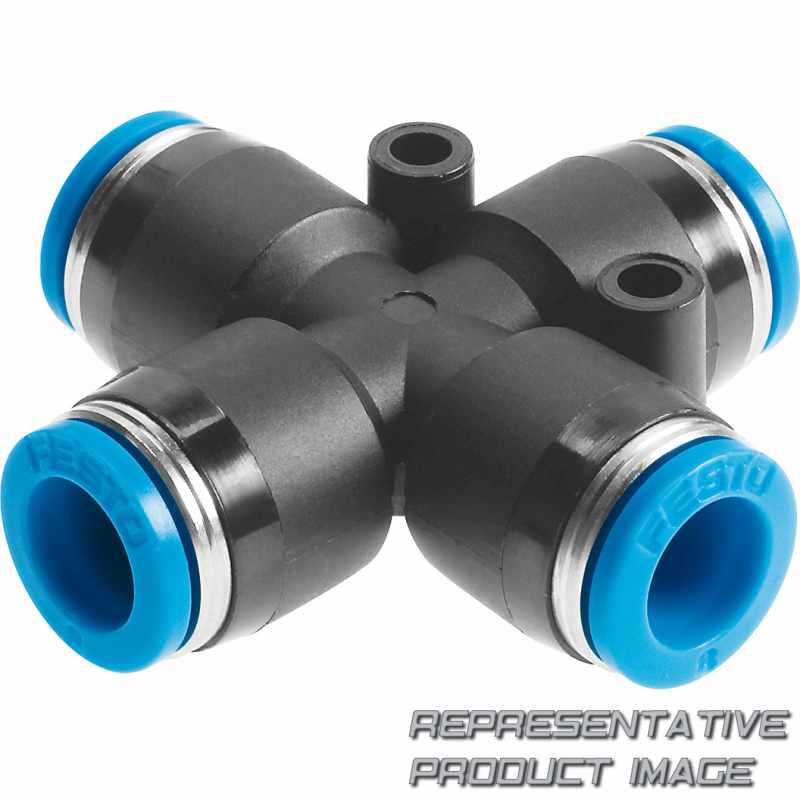

FESTO 153286 push-in x connector

Name: 153286 FESTO
Brand: FESTO
SKU: 661805-en-gbp
Price: 15.11 GBP
Availability: InStock

QSX-10

£15.11

50+ pcs. with 1 to 3 days delivery to United States

Specifications

Series (QSX)	Push-in fitting, standard series
Design	Straight shape
Pneumatic connection 1 (10)	Push-in connector 10 mm
Pneumatic connection 2	Same size push-in connector as pneumatic connection 1

Material tubing clamp component		High-alloy stainless steel
Material release ring		POM
Note on materials		RoHS-compliant
Pneumatic connection, port 2		For tubing outside diameter of 10 mm
Number of supply lines		1
Product weight		32 g
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Temperature-dependent operating pressure		-0,95 bar ... 14 bar
Design		Push-pull principle
Mounting position		optional
Size		Standard

Material tubing seal		NBR
Material housing		PBT
Colour of release ring		Blue
Pneumatic connection, port 1		For tubing outer diameter of 10 mm
Number of outputs		3
Ambient temperature		-10 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible
Maritime classification		See certificate
Operating pressure complete temperature range		-0,95 bar ... 6 bar
Size of pack		10
Nominal size		6,1 mm
