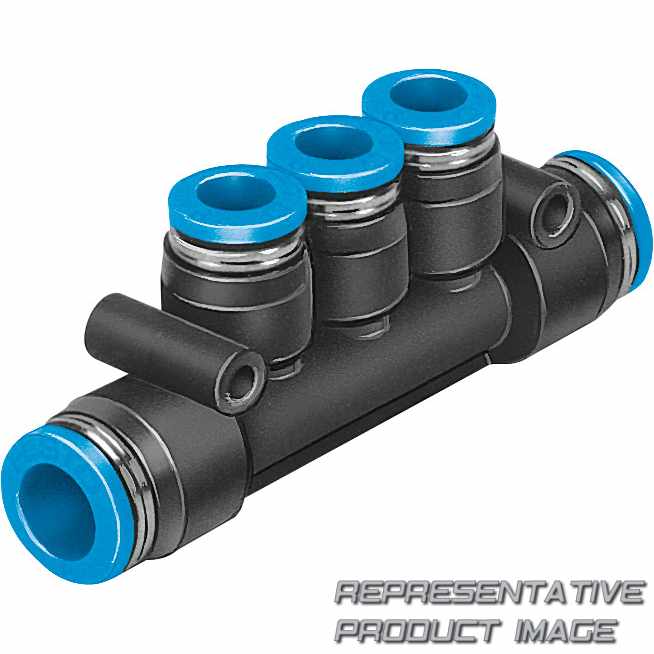

FESTO 153205 multiple distributor

Name: 153205 FESTO
Brand: FESTO
SKU: 663661-en-gbp
Price: 11.36 GBP
Availability: InStock

QST3-10-8

£11.36

7 pcs. with 1 to 3 days delivery to United States

Specifications

Series (QST3)	Multiple distributor, T-shape, 3 outlets QST3
Pneumatic connection 1 (10)	Push-in connector 10 mm

Pneumatic connection 2 (8)	Push-in connector 8 mm

Material tubing clamp component		High-alloy stainless steel
Material release ring		POM
Note on materials		RoHS-compliant
Pneumatic connection, port 2		For tubing outside diameter of 8 mm
Number of supply lines		1
Product weight		33 g
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Temperature-dependent operating pressure		-0,95 bar ... 14 bar
Size of pack		1
Mounting position		optional
Size		Standard

Material tubing seal		NBR
Material housing		PBT
Colour of release ring		Blue
Pneumatic connection, port 1		For tubing outer diameter of 10 mm
Number of outputs		4
Ambient temperature		-10 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible
Maritime classification		See certificate
Operating pressure complete temperature range		-0,95 bar ... 6 bar
Design		Push-pull principle
Nominal size		4,9 mm
