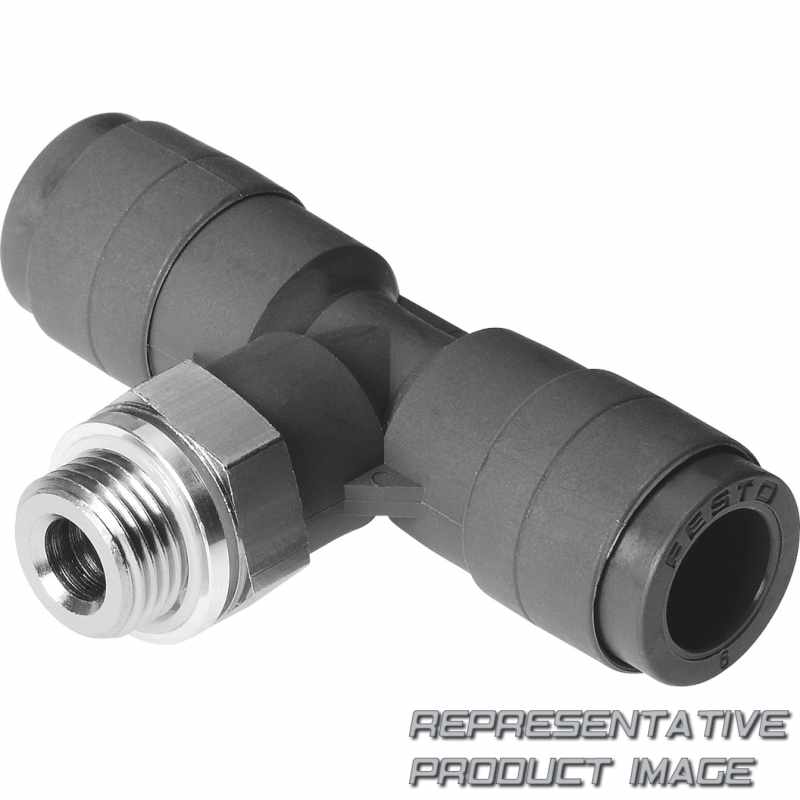

FESTO 186343 push-in t-fitting

Name: 186343 FESTO
Brand: FESTO
SKU: 663301-en-gbp
Price: 16 GBP
Availability: InStock

QST-V0-G3/8-10

£16 ~~£20.30~~ -21%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (QST)	Push-in fitting, T-shape QST
Alternative material characteristic (V0)	Flame-retardant

Pneumatic connection 1 (G3/8)	Male thread G3/8
Pneumatic connection 2 (10)	Push-in connector 10 mm

Material housing		PBT-reinforced
Material screw-in stud		Nickel-plated brass
Pneumatic connection, port 2		For tubing outside diameter of 10 mm
Product weight		46 g
Nominal torque		15,5 Nm
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Operating pressure complete temperature range		-0,95 bar ... 10 bar
Type of seal on screw-in stud		Sealing ring
Nominal size		8,3 mm

Note on materials		RoHS-compliant
Colour of release ring		Black
Pneumatic connection, port 1		G3/8
Tolerance for nominal tightening torque		± 20%
Ambient temperature		0 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible
Maritime classification		See certificate
Design		Push-pull principle
Fire test material		UL94 V-0 (housing) UL94 V-0 (releasing ring)
Size		Standard
