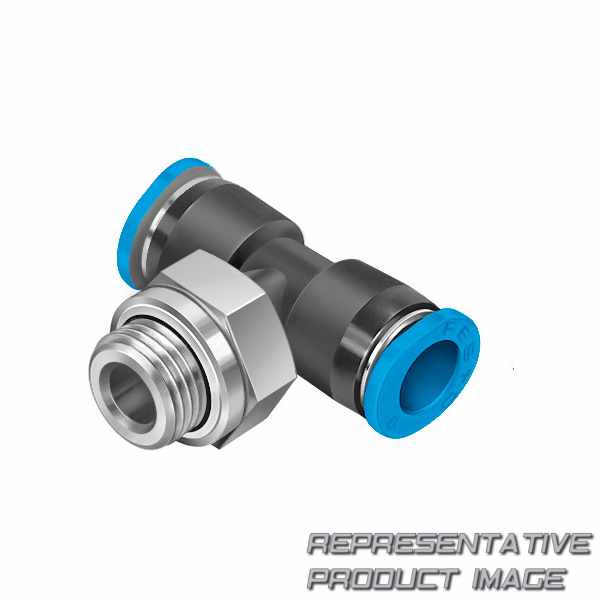

FESTO 186272 push-in t-fitting

Name: 186272 FESTO
Brand: FESTO
SKU: 687548-en-gbp
Price: 4.02 GBP
Availability: InStock

QSMT-G1/8-4

£4.02 ~~£4.48~~ -10%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Material tubing clamp component		High-alloy stainless steel
Material release ring		POM
Note on materials		RoHS-compliant
Pneumatic connection, port 2		For tubing outside diameter of 4 mm
Number of supply lines		1
Product weight		10 g
Nominal torque		7 Nm
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Temperature-dependent operating pressure		-0,95 bar ... 14 bar
Design		Push-pull principle
Mounting position		optional
Nominal size		2,4 mm

Material tubing seal		NBR
Material housing		PBT
Colour of release ring		Blue
Pneumatic connection, port 1		Male thread G1/8
Number of outputs		2
Tolerance for nominal tightening torque		± 20%
Ambient temperature		-10 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible
Maritime classification		See certificate
Operating pressure complete temperature range		-0,95 bar ... 6 bar
Size of pack		10
Type of seal on screw-in stud		Sealing ring
Size		Mini
