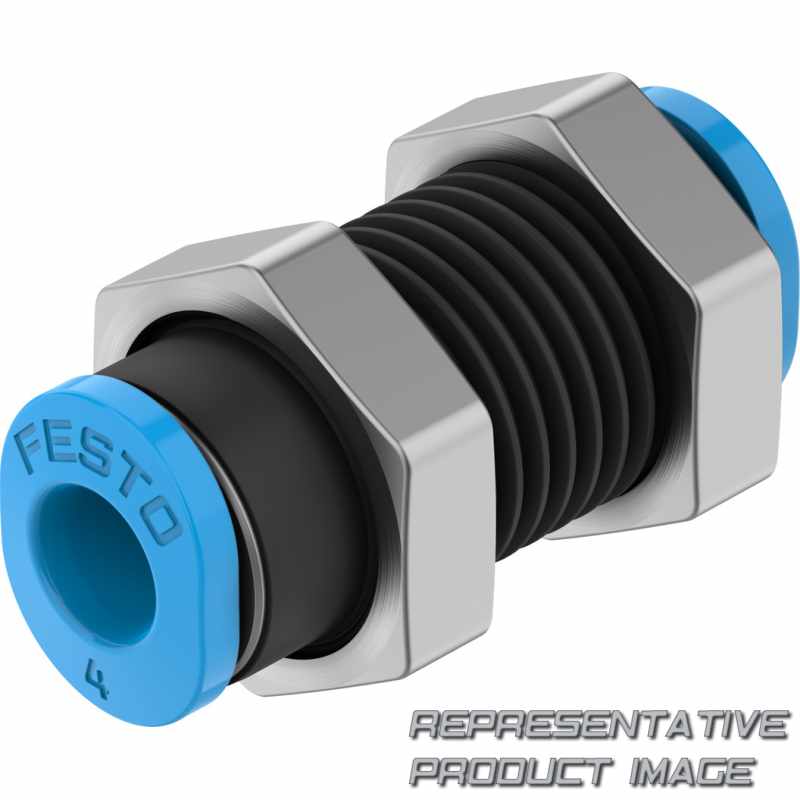

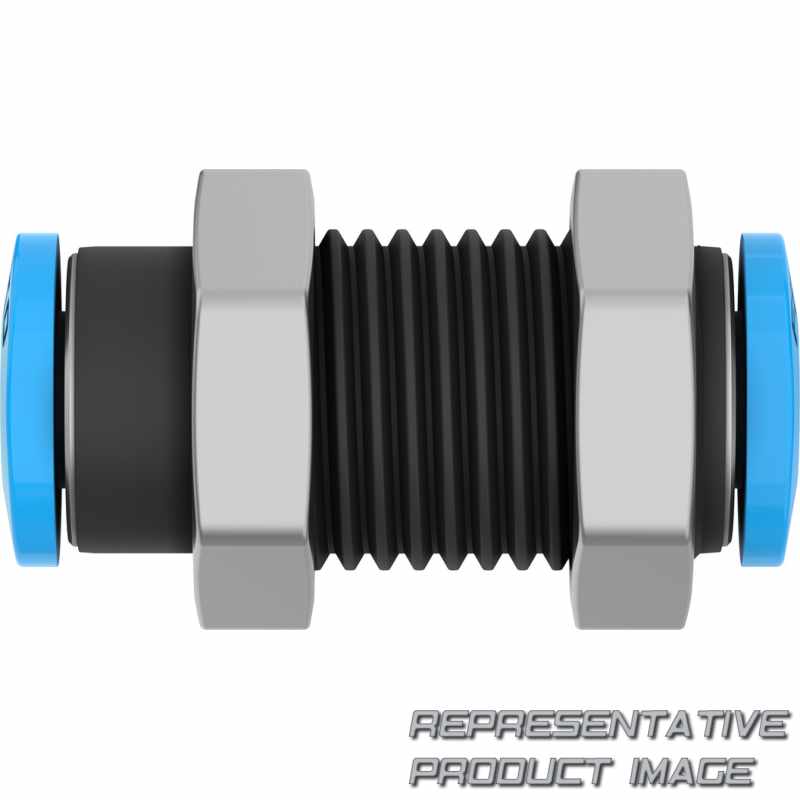

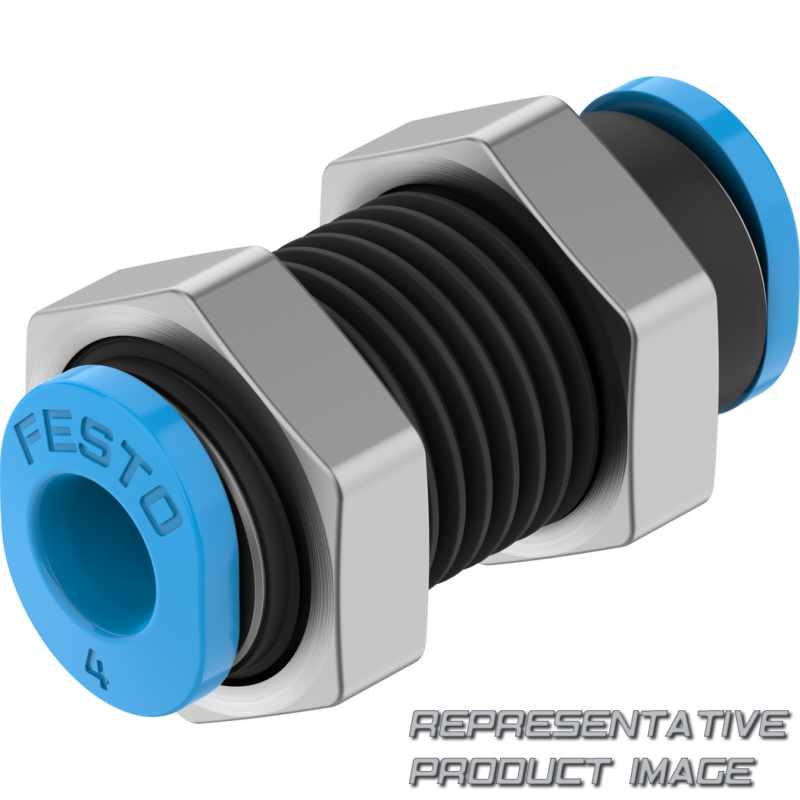

FESTO 153376 push-in bulkhead connector

Name: 153376 FESTO
Brand: FESTO
SKU: 680902-en-gbp
Price: 3.68 GBP
Availability: InStock

QSMS-4

£3.68 ~~£4.40~~ -16%

50+ pcs. with 1 to 3 days delivery to United States

Specifications

Series (QSMS)	Push-in fitting, mini series
Design	Straight shape
Pneumatic connection 1 (4)	Push-in connector 4 mm
Pneumatic connection 2	Same size push-in connector as pneumatic connection 1

Material tubing clamp component		High-alloy stainless steel
Material nut		Nickel-plated brass
Material housing		Anodised aluminium
Colour of release ring		Blue
Pneumatic connection, port 1		For tubing outer diameter of 4 mm
Ambient temperature		-10 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible
Maritime classification		See certificate
Operating pressure complete temperature range		-0,95 bar ... 6 bar
Size of pack		10
Nominal size		2,2 mm

Material tubing seal		NBR
Material release ring		POM
Note on materials		RoHS-compliant
Pneumatic connection, port 2		For tubing outside diameter of 4 mm
Product weight		6 g
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Temperature-dependent operating pressure		-0,95 bar ... 14 bar
Design		Push-pull principle
Mounting position		optional
Size		Mini
