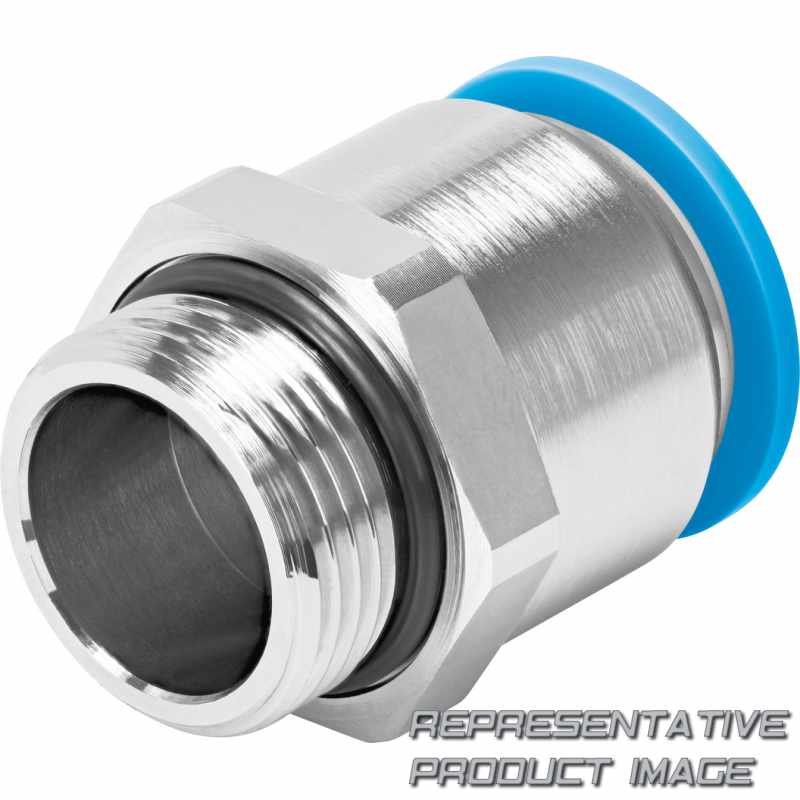

FESTO 8040613 push-in fitting

Name: 8040613 FESTO
Brand: FESTO
SKU: 670190-en-gbp
Price: 10.28 GBP
Availability: InStock

QS-G3/4-22

£10.28

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (QS)	Push-in fitting, standard series
Design	Straight shape
Pneumatic connection 1 (G3/4)	Male thread G 3/4
Pneumatic connection 2 (22)	Push-in connector 22 mm

Material tubing clamp component		High-alloy stainless steel
Material release ring		POM
Note on materials		RoHS-compliant
Pneumatic connection, port 2		For tubing outside diameter of 22 mm
Product weight		93,2 g
Nominal torque		20 Nm
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Operating pressure complete temperature range		-0,95 bar ... 14 bar
Size of pack		1
Type of seal on screw-in stud		Sealing ring
Size		Standard

Material tubing seal		NBR
Material housing		Brass Nickel-plated
Colour of release ring		Blue
Pneumatic connection, port 1		Male thread G3/4
Tolerance for nominal tightening torque		± 20%
Ambient temperature		-20 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible
Temperature-dependent operating pressure		-0,95 bar ... 14 bar
Design		Push-pull principle
Mounting position		optional
Nominal size		20 mm
