INA PWKRE35-2RS-XL

0626409170000

£63.33 ~~£76.36~~ -17%

50+ pcs. with 1 to 3 days delivery to United States

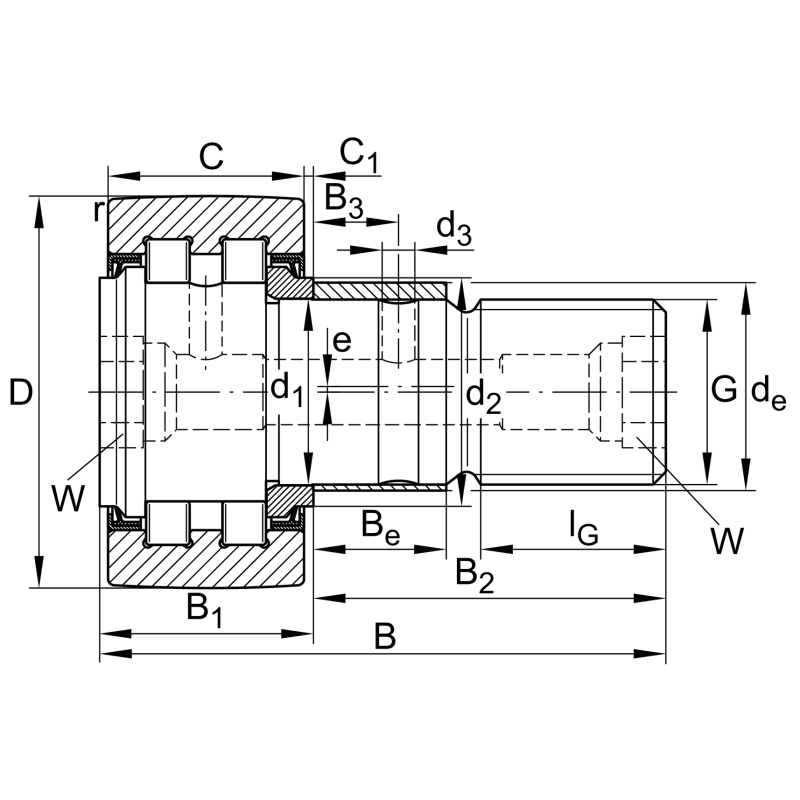

Specifications

Width	52mm
Inner Diameter	M16X1,5

Outer Diameter	35mm
Weight	178g

Outside diameter	D	35	mm
Width	B	52	mm
Basic static load rating, radial	C_0r	14,900
Speed on permanent grease lubrication	n_{D G}	6,000
Permissible dynamic load outer ring, radial	F_{r per}	10,600

Fit diameter of roller stud / stud	d₁	16	mm
Basic dynamic load rating, radial	C_r	12,500
Fatigue load limit, radial	C_ur	1,790
Permissible static load, radial	F_{0r per}	14,900

Bolt/stud length effectively	B₂	29.50	mm
Protrusion outer ring to thrust washer	C₁	3.80	mm
Stop diameter of thrust washer	d₂	27.60	mm
Thread length	I_G	17	mm
Diameter of eccentric	d_e	20	mm
Eccentricity	e	1	mm
