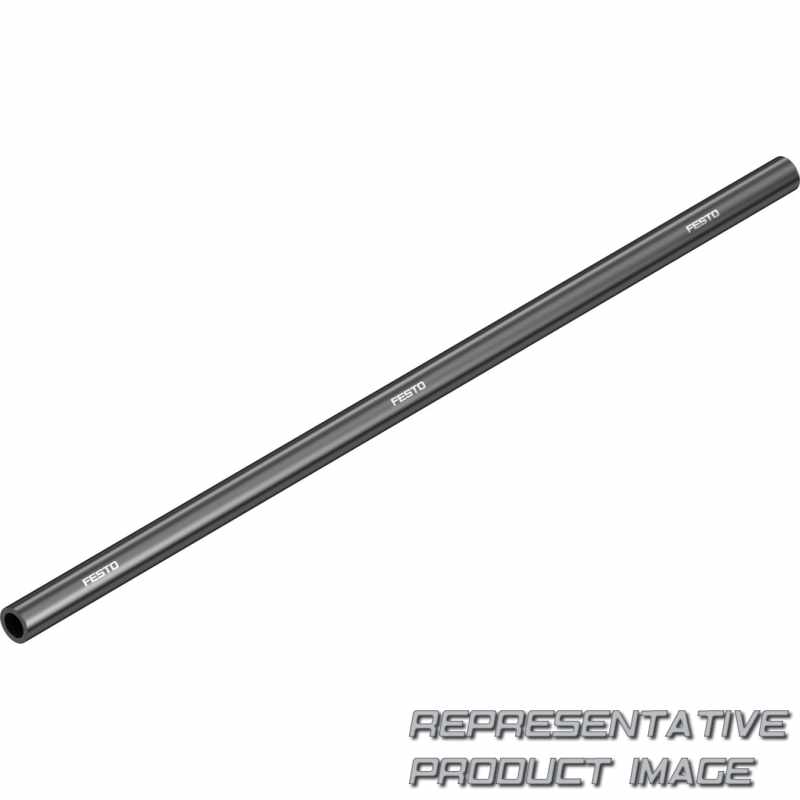

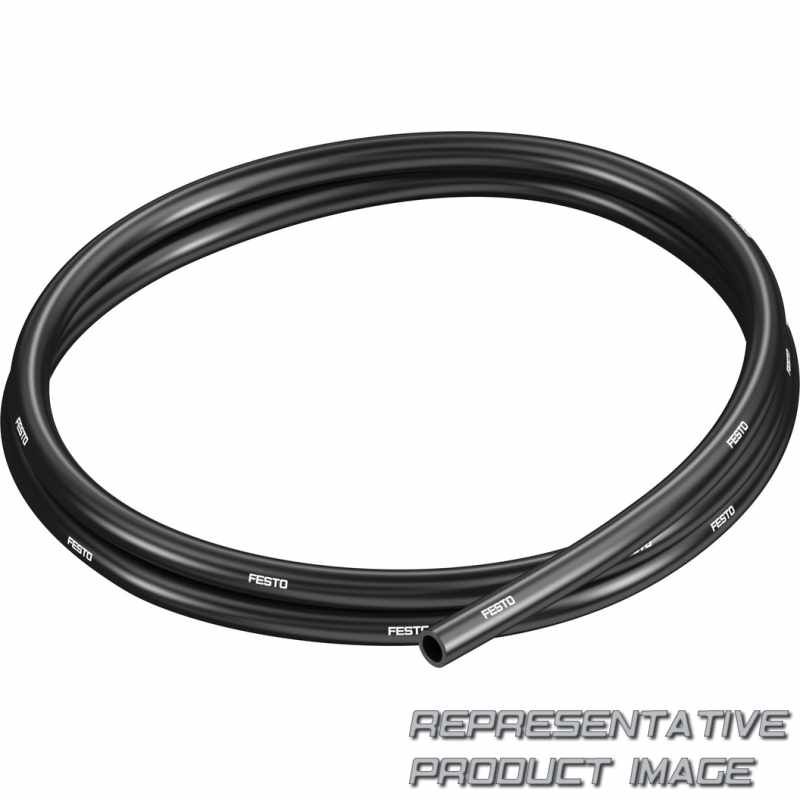

FESTO 561699 plastic tubing

Name: 561699 FESTO
Brand: FESTO
SKU: 668956-en-gbp
Price: 6.62 GBP
Availability: InStock

PUN-V0-8X2-SW-C

£6.62 /m ~~£8.41~~ /m -21%

50 m with 1 to 3 days delivery to United States

Specifications

Series (PUN)	Plastic tubing, polyurethane
Alternative material characteristic (V0)	Flame-retardant
Pipe/tubing O.D. x wall thickness (8x2)	8x2 mm

Colour (SW)	Black
Version (C)	Broader wall thickness

Material tubing		TPE-U(PU)
Shore hardness		D 54 +/-3
Colour		Black
Product weight according to length		0,049 kg/m
LABS (PWIS) conformity		VDMA24364-B2-L
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Approval		German Technical Control Board (TÜV)
Tubing characteristics		Suitable for energy chains
Inside diameter		4 mm
Outside diameter		8 mm

Note on materials		RoHS-compliant
Note to colour		Deviates from the standard colour due to flame protection
Pneumatic connection		For push-in connector O.D. 8 mm For barbed fitting I.D. 4 mm
Ambient temperature		-35 °C ... 60 °C
Fire test material		UL94 V-0 (3 mm) UL94 V-2 (0.75 mm)
Certificate issuing authority		B 013277 0506 00
Temperature-dependent operating pressure		-13,775 psi ... 290 psi
Min. bending radius		9 mm
Flow-relevant bending radius		35 mm
