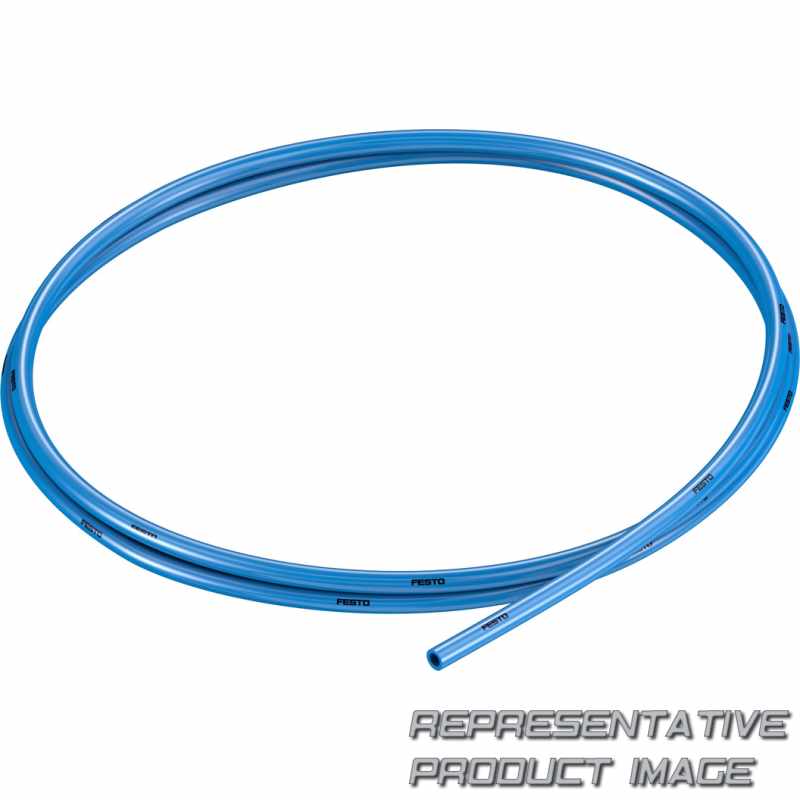

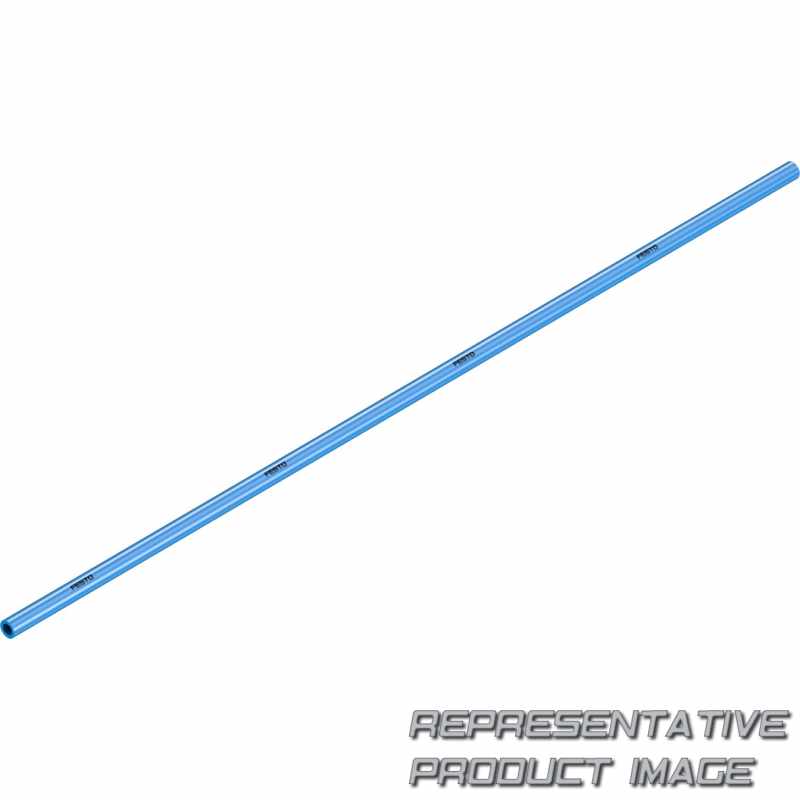

FESTO 570350 plastic tubing

Name: 570350 FESTO
Brand: FESTO
SKU: 679524-en-gbp
Price: 4.31 GBP
Availability: InStock

PUN-V0-4X1-BL-C

£4.31 /m

1,000 mm with 1 to 3 days delivery to United States

Specifications

Series (PUN)	Plastic tubing, polyurethane
Alternative material characteristic (V0)	Flame-retardant
Pipe/tubing O.D. x wall thickness (4x1)	4x1 mm

Colour (BL)	Blue
Version (C)	Broader wall thickness

Material tubing		TPE-U(PU)
Shore hardness		D 54 +/-3
Colour		Blue
Product weight according to length		0,012 kg/m
LABS (PWIS) conformity		VDMA24364-B2-L
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Approval		German Technical Control Board (TÜV)
Tubing characteristics		Suitable for energy chains
Inside diameter		2 mm
Outside diameter		4 mm

Note on materials		RoHS-compliant
Note to colour		Deviates from the standard colour due to flame protection
Pneumatic connection		For push-in connector O.D. 4 mm
Ambient temperature		-35 °C ... 60 °C
Fire test material		UL94 V-0 (3 mm) UL94 V-2 (0.75 mm)
Certificate issuing authority		B 013277 0506 00
Temperature-dependent operating pressure		-13,775 psi ... 145 psi
Min. bending radius		10 mm
Flow-relevant bending radius		20 mm
