FESTO 197381 plastic tubing

Name: 197381 FESTO
Brand: FESTO
SKU: 676565-en-gbp
Price: 4.45 GBP
Availability: InStock

PUN-H-16X2,5-NT

£4.45 /m ~~£6.43~~ /m -30%

41 m with 1 to 3 days delivery to United States

Specifications

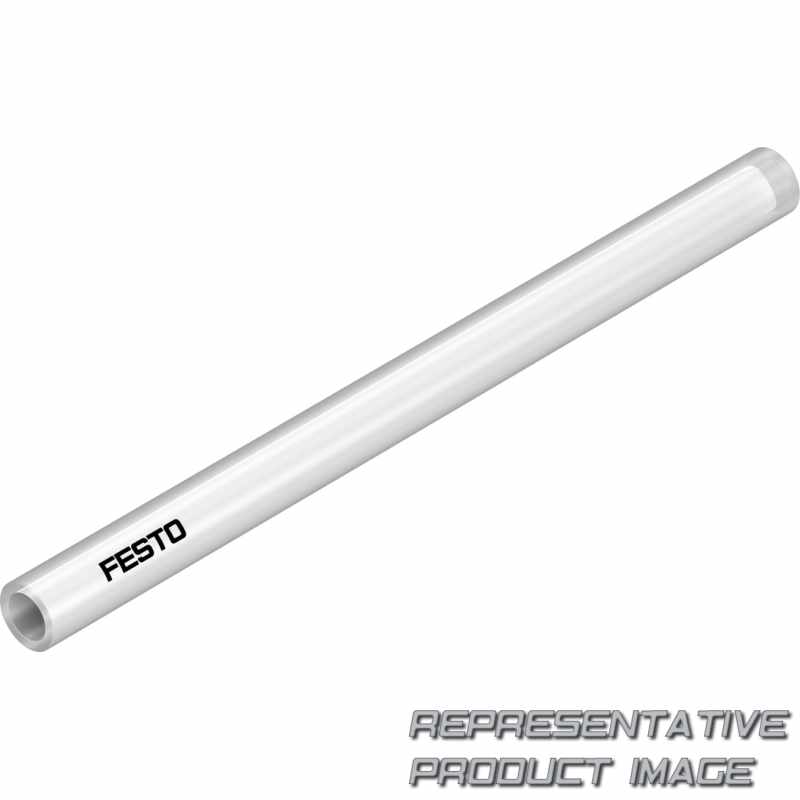

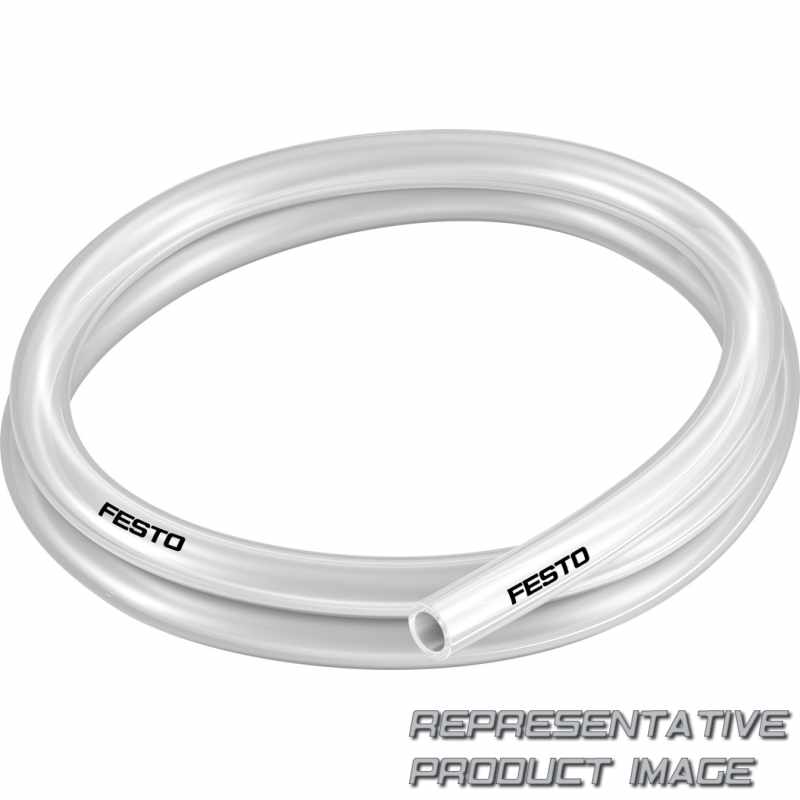

Series (PUN)	Plastic tubing, polyurethane
Alternative material characteristic (H)	Hydrolysis-resistant
Pipe/tubing O.D. x wall thickness (16x2.5)	16x2.5 mm

Material tubing		TPE-U(PU)
Shore hardness		D 52 +/-3
Pneumatic connection		For push-in connector O.D. 16 mm
Ambient temperature		-35 °C ... 60 °C
Cleanroom class		Element installed statically, no meaningful evaluation possible according to ISO 14644-1
LABS (PWIS) conformity		VDMA24364-B2-L
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Approval		German Technical Control Board (TÜV)
Tubing characteristics		Suitable for energy chains
Inside diameter		11 mm
Outside diameter		16 mm

Note on materials		RoHS-compliant
Colour		Natural
Product weight according to length		0,123 kg/m
Suitable for use with food		See supplementary material information
Suitability for the production of Li-ion batteries		Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Fire test material		UL94 HB
Certificate issuing authority		B 013277 0506 00
Temperature-dependent operating pressure		-13,775 psi ... 145 psi
Min. bending radius		38 mm
Flow-relevant bending radius		88 mm
