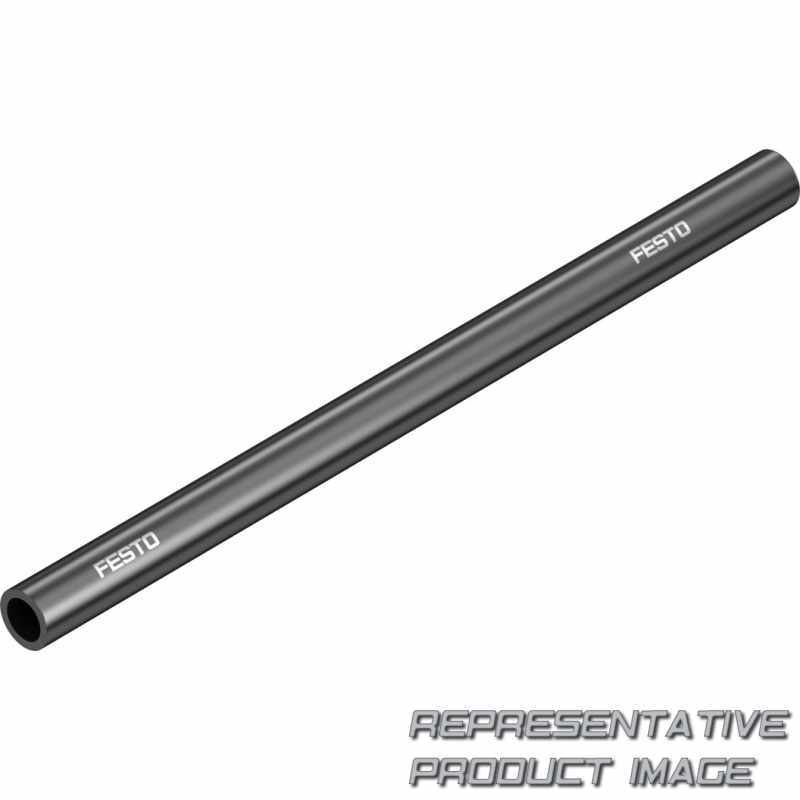

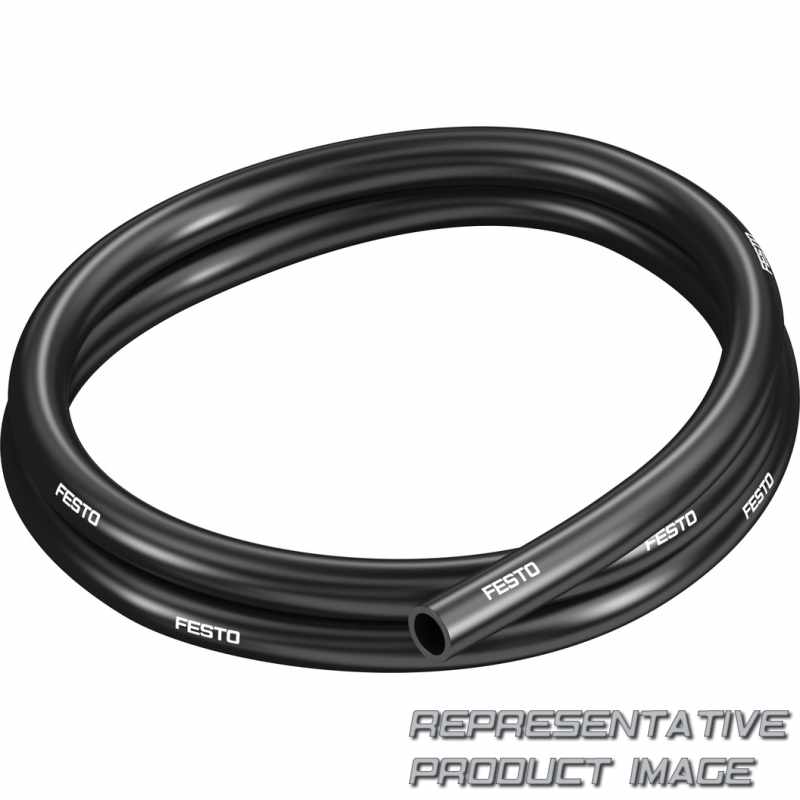

FESTO 570387 plastic tubing

Name: 570387 FESTO
Brand: FESTO
SKU: 663463-en-gbp
Price: 3.69 GBP
Availability: InStock

PUN-H-14X2-SW

£3.69 /m ~~£4.69~~ /m -21%

1,000 mm with 1 to 3 days delivery to United States

Specifications

Series (PUN)	Plastic tubing, polyurethane
Alternative material characteristic (H)	Hydrolysis-resistant
Pipe/tubing O.D. x wall thickness (14x2)	14x2 mm

Material tubing		TPE-U(PU)
Shore hardness		D 52 +/-3
Pneumatic connection		For push-in connector outer diameter of 14 mm
Ambient temperature		-35 °C ... 60 °C
Cleanroom class		Element installed statically, no meaningful evaluation possible according to ISO 14644-1
LABS (PWIS) conformity		VDMA24364-B2-L
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Approval		German Technical Control Board (TÜV)
Tubing characteristics		Suitable for energy chains
Inside diameter		9,8 mm
Outside diameter		14 mm

Note on materials		RoHS-compliant
Colour		Black
Product weight according to length		0,091 kg/m
Suitable for use with food		See supplementary material information
Suitability for the production of Li-ion batteries		Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Fire test material		UL94 HB
Certificate issuing authority		B 013277 0506 00
Temperature-dependent operating pressure		-13,775 psi ... 145 psi
Min. bending radius		38 mm
Flow-relevant bending radius		78 mm
