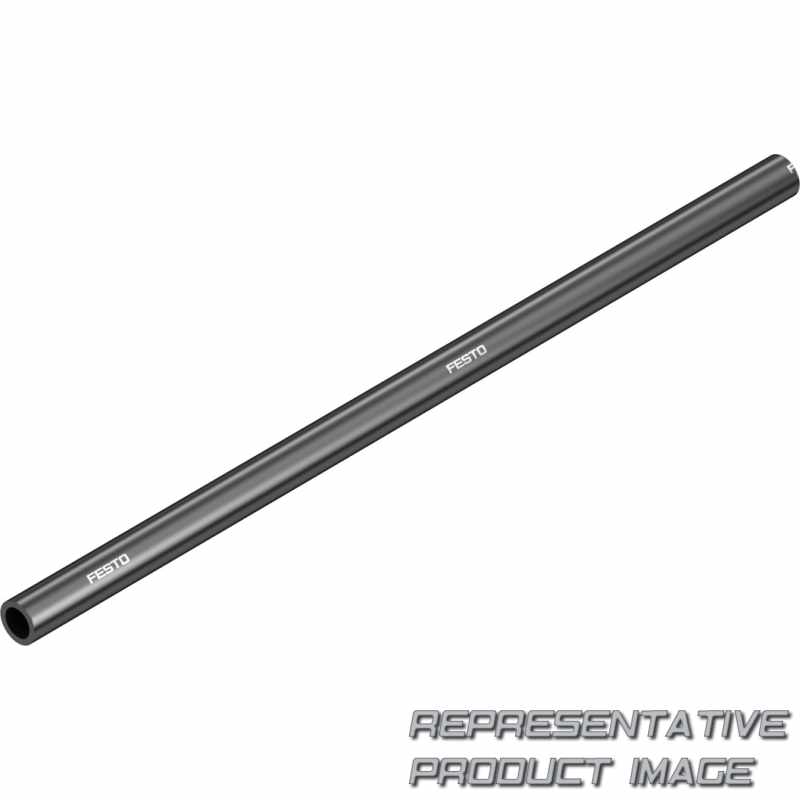

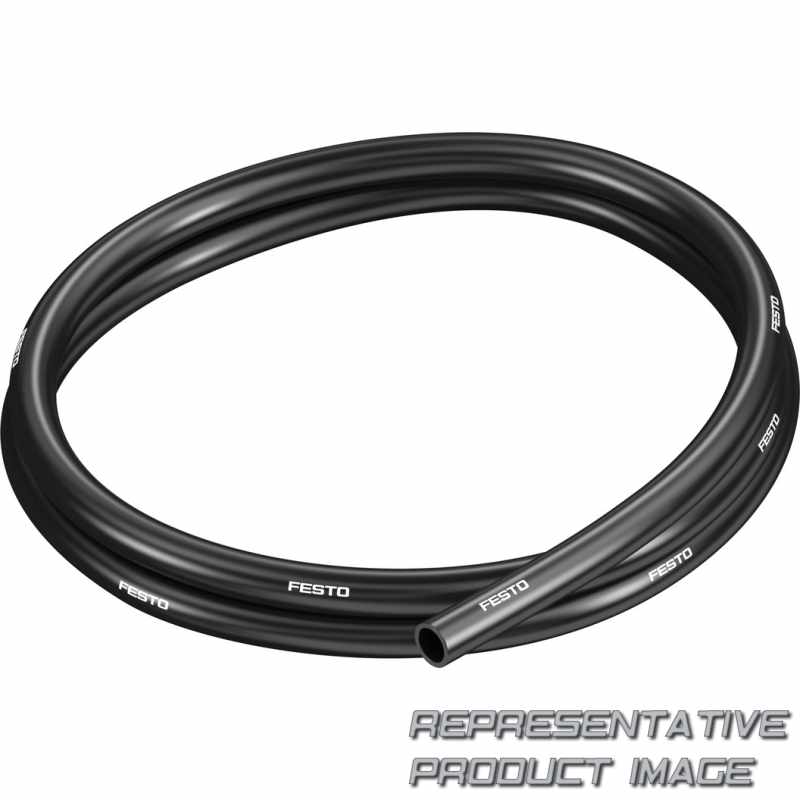

FESTO 130817 plastic tubing

Name: 130817 FESTO
Brand: FESTO
SKU: 701412-en-gbp
Price: 11.31 GBP
Availability: InStock

PUN-CM-10-SW

£11.31 /m ~~£14.35~~ /m -21%

1,000 mm with 1 to 3 days delivery to United States

Specifications

Series (PUN)	Plastic tubing, polyurethane
Alternative material characteristic (CM)	Antistatic

Tubing outside diameter (10)	10 mm
Colour (SW)	Black

Material tubing		TPE-U(PU)
Shore hardness		D 52 +/-3
Pneumatic connection		For push-in connector O.D. 10 mm
Ambient temperature		-35 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Temperature-dependent operating pressure		-13,775 psi ... 145 psi
Min. bending radius		30 mm
Flow-relevant bending radius		60 mm

Note on materials		RoHS-compliant
Colour		Black
Product weight according to length		0,052 kg/m
LABS (PWIS) conformity		VDMA24364-B2-L
Surface resistance		0,01 MOhm ... 10 MOhm
Tubing characteristics		Suitable for energy chains
Inside diameter		7 mm
Outside diameter		10 mm
