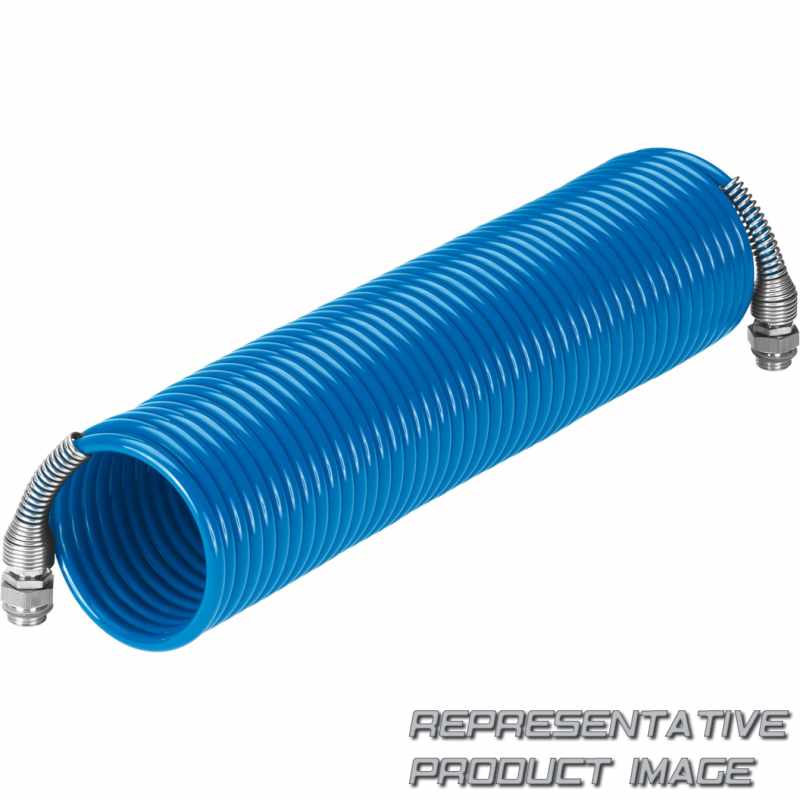

FESTO 19797 spiral plastic tubing

Name: 19797 FESTO
Brand: FESTO
SKU: 690698-en-gbp
Price: 135.66 GBP
Availability: InStock

PPS-6-15-1/4-BL

£135.66

7 pcs. with 1 to 3 days delivery to United States

Specifications

Series (PPS)	Spiral plastic tubing, polyamide
Pipe/tubing I.D. [mm] (6)	6.20
Working length [m] (15)	15

Pneumatic connection (1/4)	Male thread G1/4
Colour (BL)	Blue

Material tubing		PA12-P
Note on materials		RoHS-compliant
Colour		Blue
Pneumatic connection, port 1		Male thread G1/4
Tolerance for nominal tightening torque		± 20%
Ambient temperature		-30 °C ... 80 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Number of turns		86
Inside diameter		6,2 mm
Outside diameter		7,8 mm

Material buckling protection		Steel Galvanised
Material connecting thread		Brass
Pneumatic connection, port 2		Male thread G1/4
Product weight		500 g
Nominal torque		11 Nm
Corrosion resistance class CRC		1 - Low corrosion stress
Temperature-dependent operating pressure		-0,95 bar ... 17,2 bar
Winding diameter		75 mm
Block length		0,8 m
Working length		15 m
