| Bore diameter | d | 40 | mm |
| Height flange | h1 | 176 | mm |
| Basic dynamic load rating, radial | Cr | 34,500 |
| Flange width | a | 100 | mm |
| Total height unit | U | 54.30 | mm |
| Basic static load rating, radial | C0r | 19,800 |

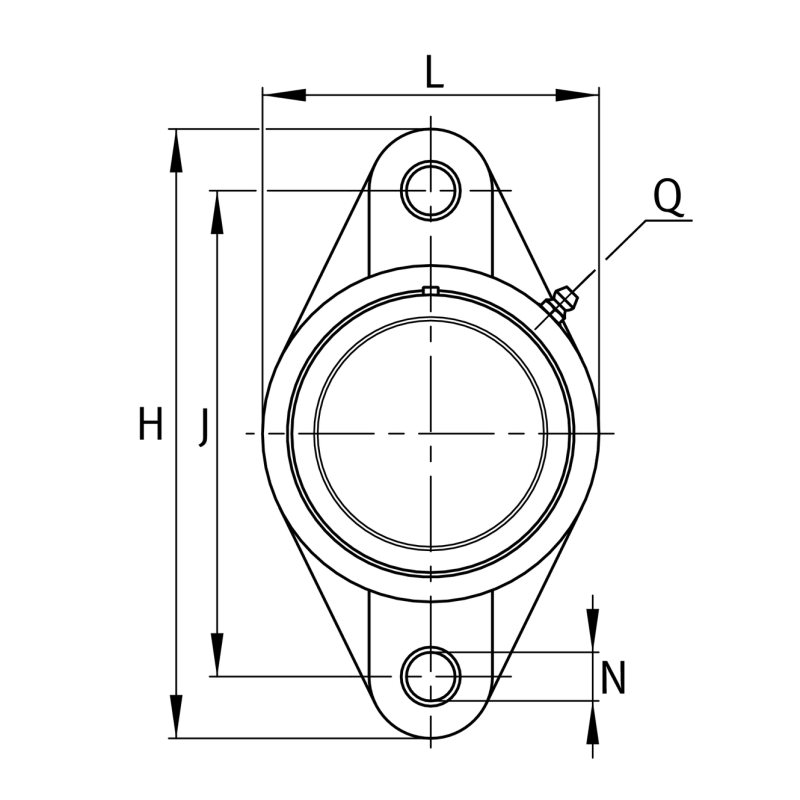

| Distance fixing bore | J | 144 | mm |
| Number of screwing holes | n | 2 |
| Fixing bore | N | 14 | mm |
| Thickness of flange | C1 | 20 | mm |
| connection thread lubrication | 1/4-28 UNF |

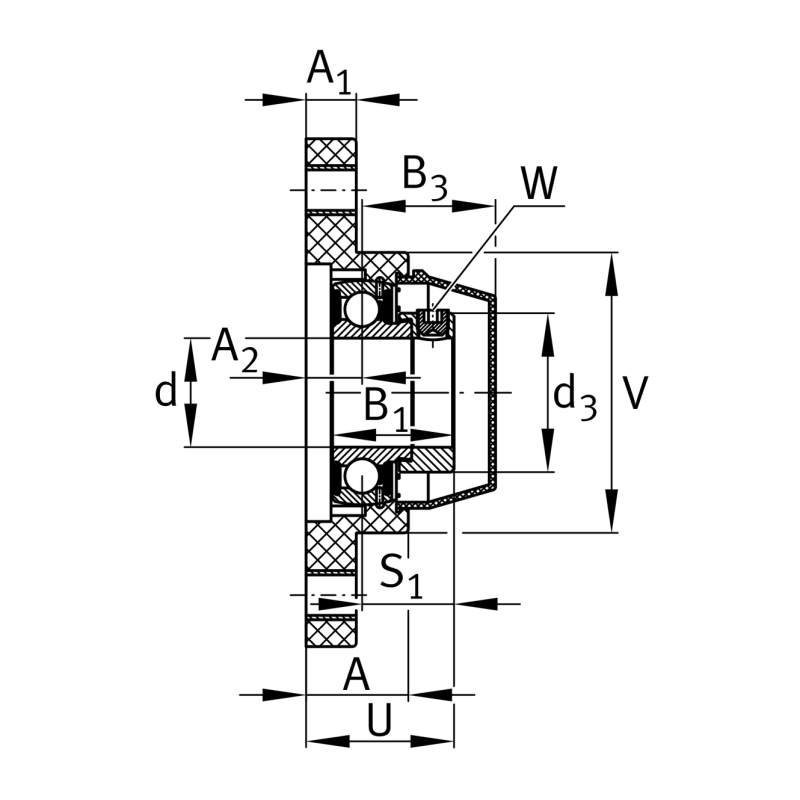

| Distance raceway | A2 | 21.50 | mm |
| Outside diameter locking collar | d3 | 58 | mm |
