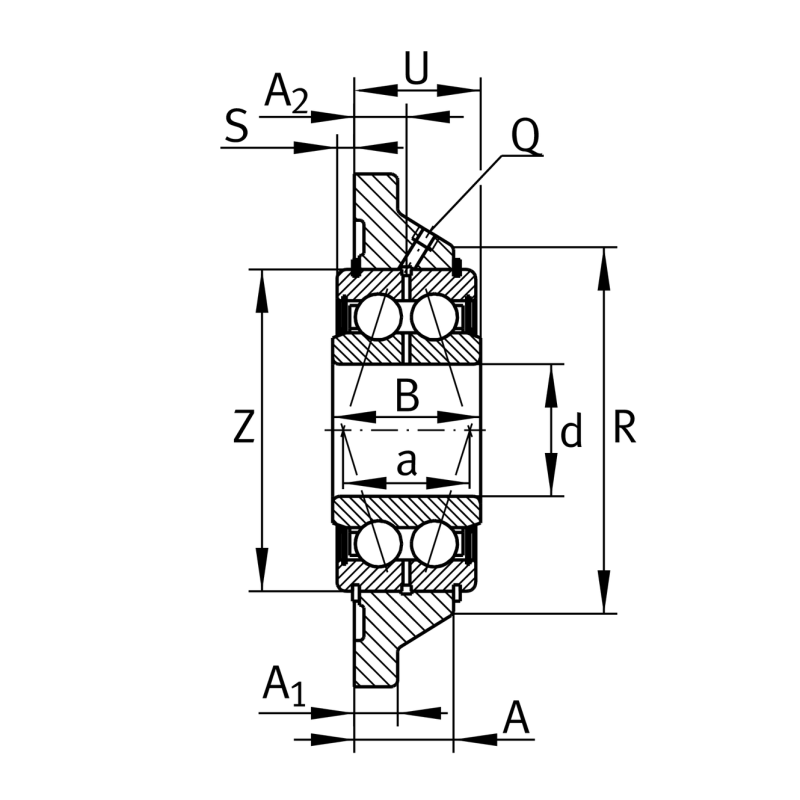

| Bore diameter | d | 35 | mm |
| Total height unit | U | 31.70 | mm |
| Basic static load rating, radial | C0r | 29,000 |
| Flange width | a | 118 | mm |
| Basic dynamic load rating, radial | Cr | 39,500 | |
| Fatigue load limit, radial | Cur | 1,520 |

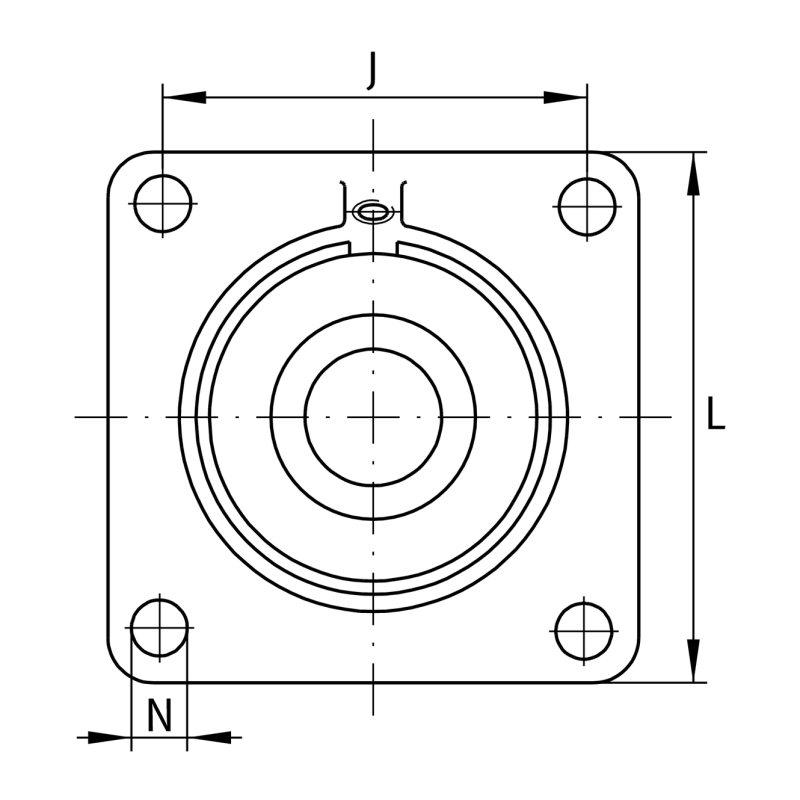

| Distance fixing bore | J | 92 | mm |
| Number of screwing holes | n | 4 |
| Fixing bore | N | 14 | mm |
| Thickness of flange | C1 | 14 | mm |
| Width | B | 36 | mm |
| Distance raceway | A2 | 14 | mm |
| connection thread lubrication | M6 |
