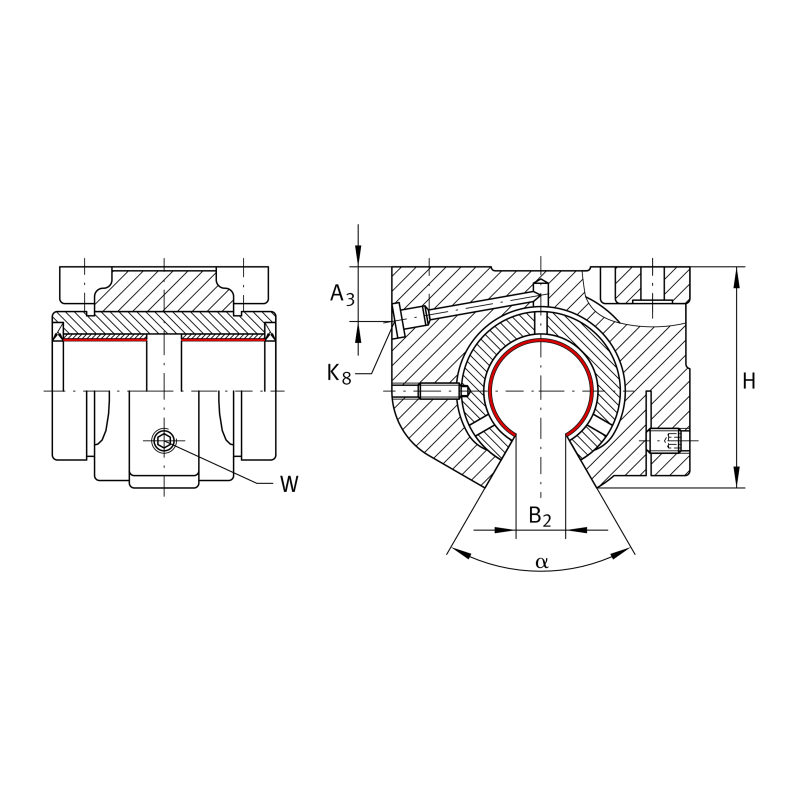

| Diameter of ball complement | FW | 30 | mm |
| length | L | 68 | mm |
| Width | B | 84 | mm |
| heigth | H | 63.50 | mm |
| Tolerance | h12 |
| Upper tolerance | Tol A5 | +0,2 | |
| Center height | H2 | 35 | mm |
| Mounting dimension | JB | 11 | mm |
| Width across flats | W | 3 | mm |
| Angle | α | 54 | ° |
| Lower tolerance | Tol H2 | -0,2 | |
| Tolerance | -0,5 | ||
| Lubrication nipple | K8 | NIPA2 | |
| max. tightening torque | M Wmax | 2.95 | Nm |
