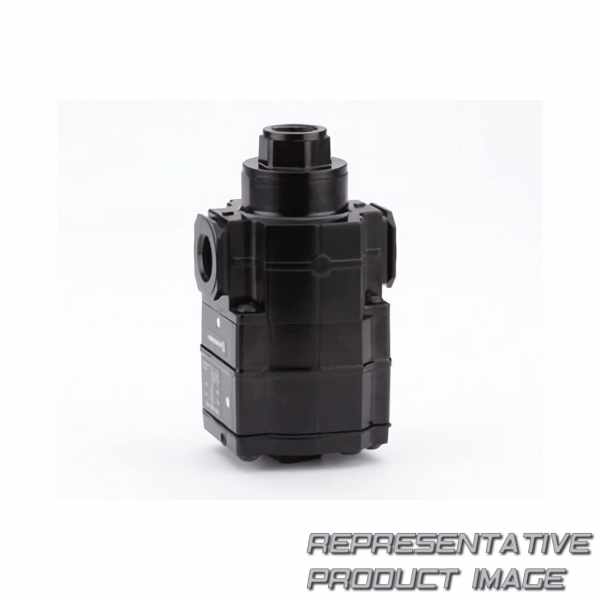

NORGREN P74F-4GA-NNN excelon soft start dump valve

Name: P74F-4GA-NNN NORGREN
Brand: NORGREN
SKU: 790242-en-gbp
Price: 952.39 GBP
Availability: SoldOut

£952.39

Limited stock only available on quotation

Specifications

Width	84mm
Weight	1.76Kg

actuation		air pilot / spring return
air pilot ports		rc1/4
bonnet		zinc
elastomers		nitrile rubber
exhaust port		g1/2
flow flow dm3secbar		57 dm3/(s.bar) dm3/sec
maximum inlet pressure imperial pressure psi		247 psig
Medium		compressed air
operating pressure pressure bar min to max range		3 ... 17 bar
operating temperature f temperature fahrenheit min to max range		-4 ... 150 °f
operation		3/2
height length millimetre		74 mm
weight weight kilogram		1.76 kg
partially replaced part		p84f-4gt-pfn
product style		modular
relief port		g1/2
retrieve price		true
springs		stainless steel

air pilot port air pilot operated types only		rc1/4
body		aluminium
data performance shelf life		10 years
eu country of origin		czechia
flow flow dm3sec		57 dm3/sec
maximum flow flow dm3sec		57 dm3/sec
maximum inlet pressure pressure bar		17 bar
mil spec		unavailable
operating pressure psi pressure psi min to max range		44 ... 247 psi
operating temperature temperature celsius min to max range		-20 ... 80 °c
operator		air pilot
length length millimetre		144 mm
width length millimetre		84 mm
Port size		g1/2
range		p74f
replaced flag		yes
Series		excelon
