P32SA14PPN Parker Hannifin

PARKER P32SA14PPN

Name: P32SA14PPN PARKER
Brand: PARKER
SKU: 550600-en-gbp
Price: 194.77 GBP
Availability: SoldOut

£194.77 ~~£288.49~~ -32%

Limited stock only available on quotation

Specifications

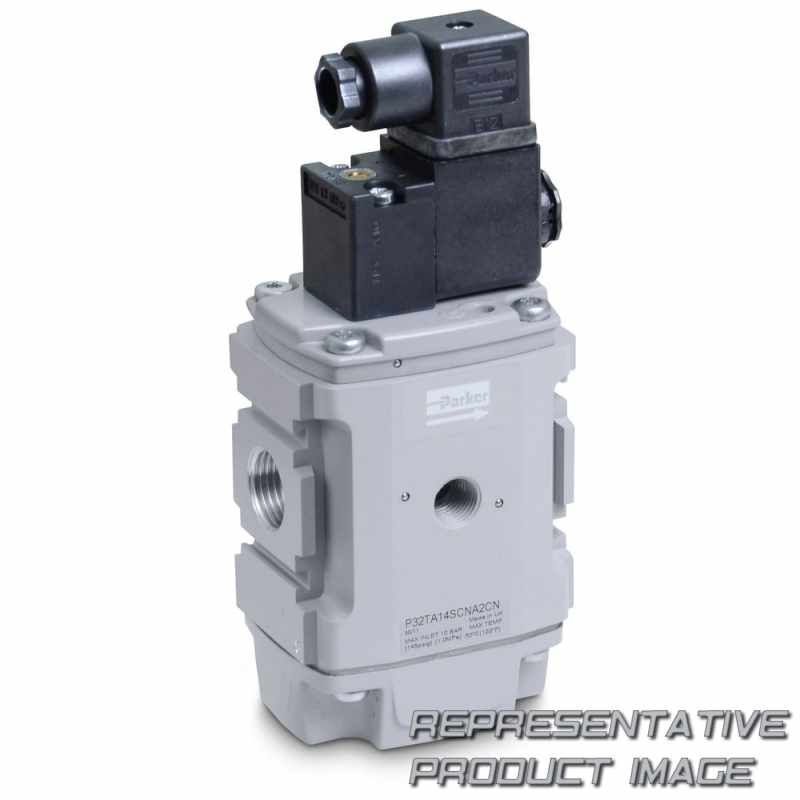

P32S is a 75mm 2-way, 2-position valve, provides for the safe introduction of pressure, adjustable slow start, 1/2" BSPP/NPT port. Max pressure of 10 bar (solenoid). Temp -10°C to 50°C.

max. flow	101 @ 91 psig scfm, 48 @ 6.3 bar dm3/sec

Weight	900g

Technical data

solenoid option		external air pilot operated
function		2/2
actuation type		external air pilot
minimum operating pressure		44 psig, 3 bar
port type		bspp
maximum ambient temperature		-4° to 176° °f, -20° to 80° °c
specifications met		atex 'out of scope' certification (group ii cat2 zone 1,21) \| cei/ice 61373 1999-1 cat2 (bs en 61373:1999)

product type		soft start valve
number of positions		2
maximum inlet pressure rating		250 psig, 17 bar
maximum flow rate		101 @ 91 psig scfm, 48 @ 6.3 bar dm3/sec
Port size		1/2 inch
Weight		2 lb, 0.9 kg
