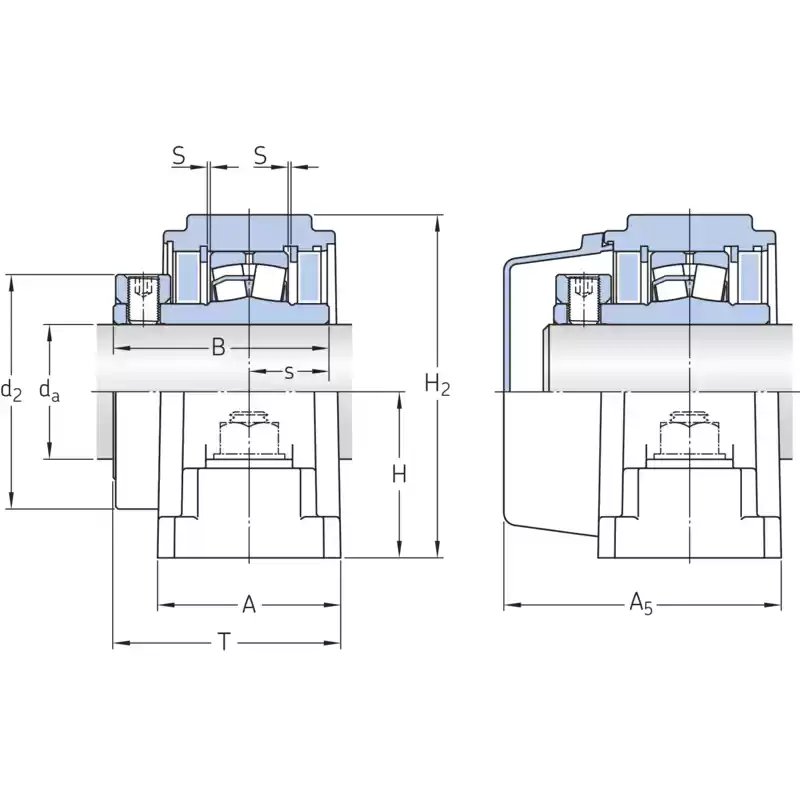

| Shaft diameter | d | 74.61 | mm |
| Housing foot width | A | 76.20 | mm |
| Inner ring width | B | 92.08 | mm |
| Housing foot height | H1 | 47.63 | mm |

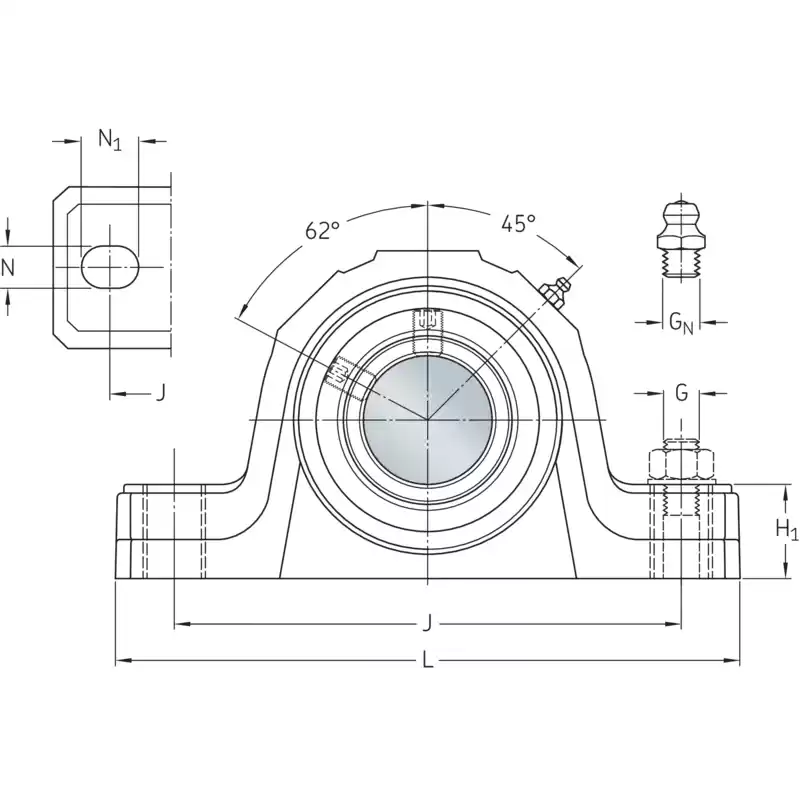

| Distance between attachment bolts, max. | J | min.234.95 | |
| Distance of attachment bolts | J | 241.30 | mm |
| Width foot slot width | N | 22.23 | mm |
| Centre line unit to side face of inner ring | s | 31.75 | mm |
| Total width | T | 99.22 | mm |
| Collar outer diameter | d2 | 111.125 | |
| Width including end cover | A5 | 114.697 | |
| Height base to center | H | 79.38 | mm |
| Housing height | H2 | 160.338 | |
| Distance between attachment bolts, min. | J | max.247.65 | |
| Housing length | L | 304.80 | mm |
| Length of attachment bolt hole | N1 | 28.58 | mm |
| Centre line of "fixed" bearing | S | 0.79 | mm |
