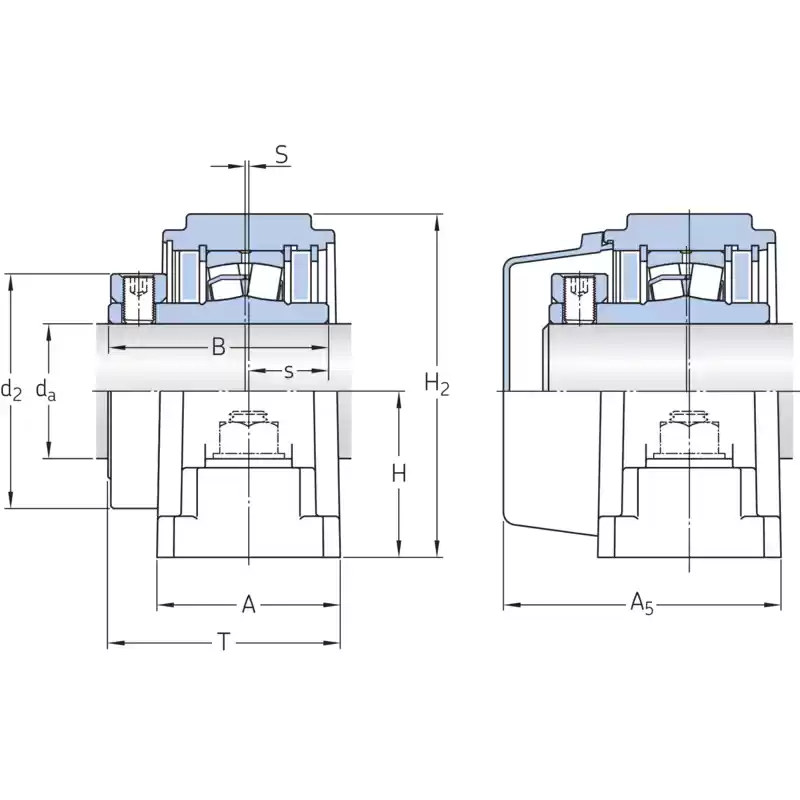

| Total width | T | 91.28 | mm |
| Centreline unit to side face of inner ring | s | 31.75 | mm |
| Width foot slot width | N | 19.05 | mm |
| Distance of attachment bolts | J | 215.90 | mm |
| Distance between attachment bolts, min. | J | min.222.25 | |
| Housing foot height | H1 | 41.28 | mm |
| Inner ring width | B | 85.73 | mm |
| Housing foot width | A | 73.03 | mm |
| Shaft diameter | d | 61.91 | mm |
| Centreline of "fixed" bearing | S | 0.79 | mm |
| Length of attachment bolt hole | N1 | 25.40 | mm |
| Housing length | L | 266.70 | mm |
| Distance between attachment bolts, max. | J | max.209.55 | |
| Housing height | H2 | 144.463 | |
| Height base to center | H | 69.85 | mm |
| Width including end cover | A5 | 108.744 | |
| Collar outer diameter | d2 | 101.60 | mm |
