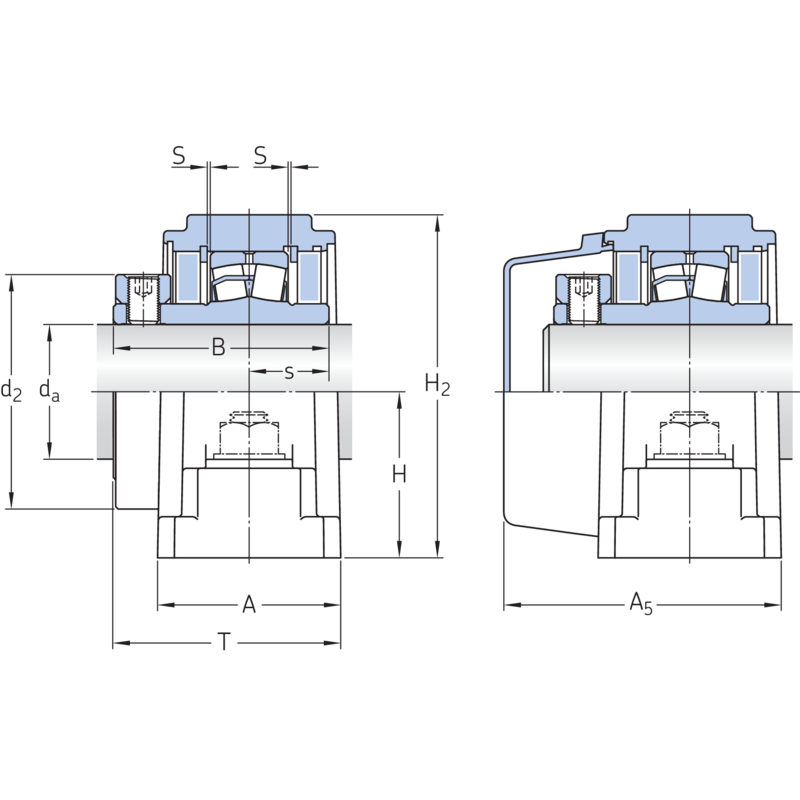

| Total width | T | 84.93 | mm |
| Centre line unit to side face of inner ring | s | 28.58 | mm |
| Width foot slot width | N | 19.05 | mm |
| Distance of attachment bolts | J | 198.438 | |
| Distance between attachment bolts, max. | J | min.193.675 | |
| Housing foot height | H1 | 38.10 | mm |
| Inner ring width | B | 79.38 | mm |
| Housing foot width | A | 66.68 | mm |
| Shaft diameter | d | 55.56 | mm |
| Centre line of "fixed" bearing | S | 0.79 | mm |
| Length of attachment bolt hole | N1 | 23.81 | mm |
| Housing length | L | 244.475 | |
| Distance between attachment bolts, min. | J | max.203.2 | |
| Housing height | H2 | 127 | mm |
| Height base to center | H | 63.50 | mm |
| Width including end cover | A5 | 100.806 | |
| Collar outer diameter | d2 | 82.55 | mm |
