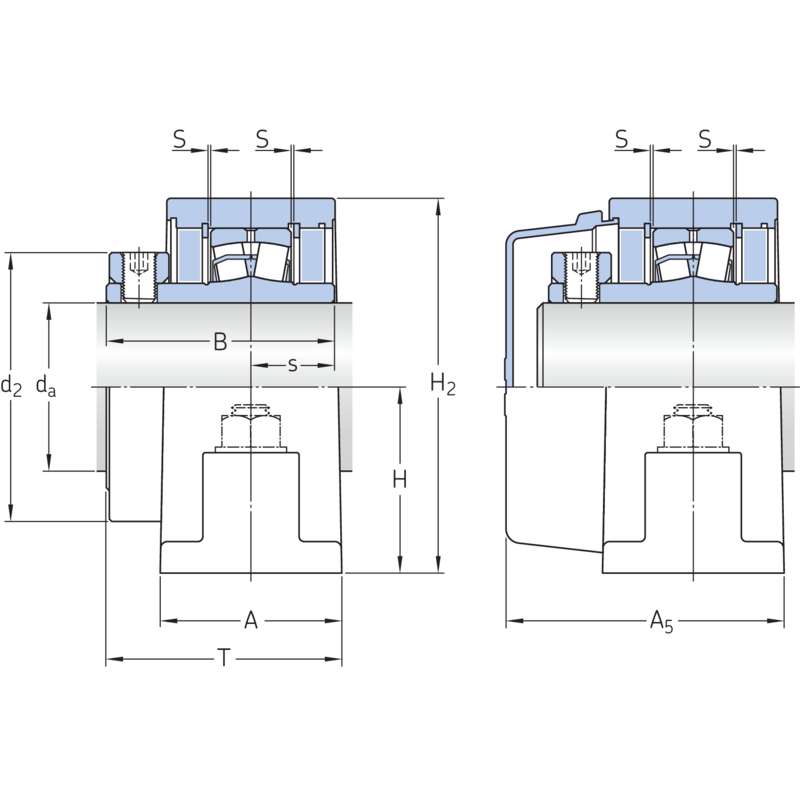

| Total width | T | 95.25 | mm |
| Centre line unit to side face of inner ring | s | 31.75 | mm |

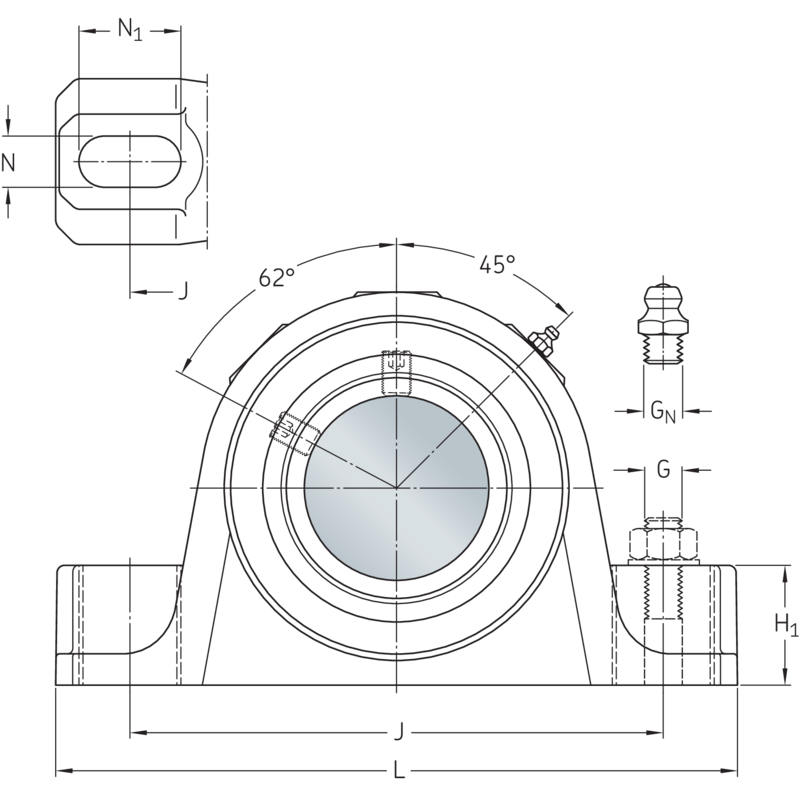

| Width foot slot width | N | 22.23 | mm |
| Distance of attachment bolts | J | 211.138 | |
| Distance between attachment bolts, max. | J | min.198.438 | |
| Housing foot height | H1 | 57.15 | mm |
| Inner ring width | B | 92.08 | mm |
| Housing foot width | A | 68.26 | mm |
| Shaft diameter | d | 74.61 | mm |
| Centre line of "fixed" bearing | S | 0.79 | mm |
| Length of attachment bolt hole | N1 | 34.93 | mm |
| Housing length | L | 265.113 | |
| Distance between attachment bolts, min. | J | max.223.838 | |
| Housing height | H2 | 165.894 | |
| Height base to center | H | 82.55 | mm |
| Width including end cover | A5 | 106.759 | |
| Collar outer diameter | d2 | 111.125 |
