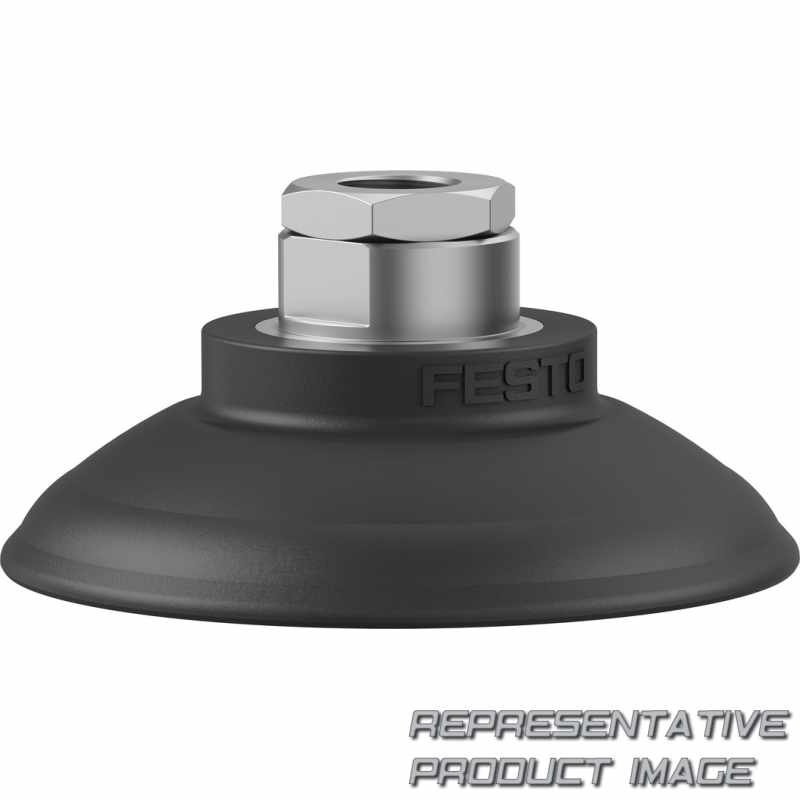

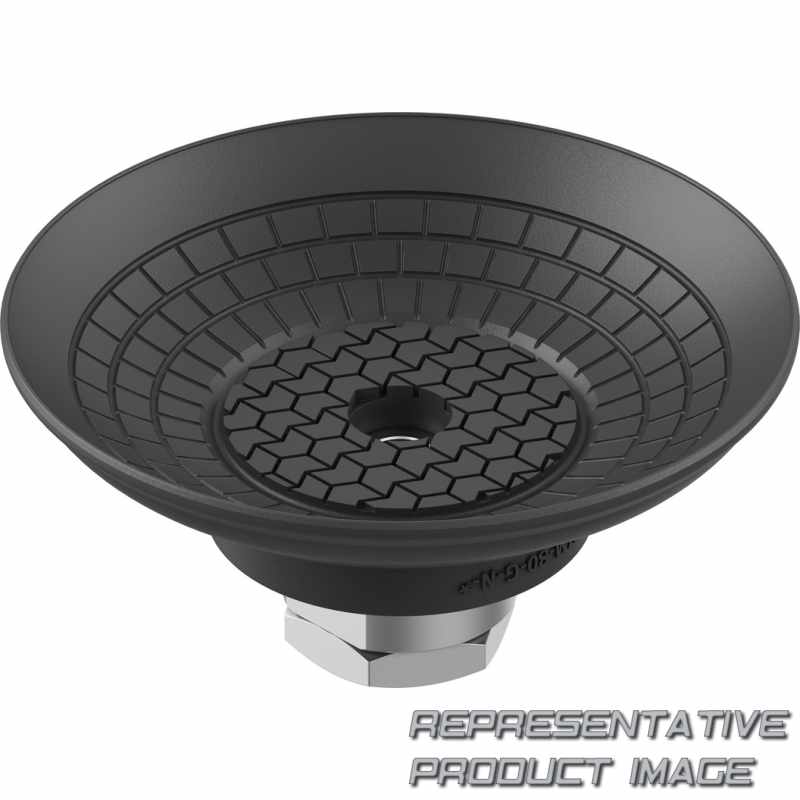

| Material suction cup | NBR | ||
| Material screw-in stud | Wrought aluminium alloy | ||
| Colour | Black | ||
| Type of mounting | Via vacuum port | ||
| Lateral force at nominal operating pressure | 241 N | ||
| Ambient temperature | -20 °C ... 80 °C | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Nominal operating pressure | -0,6 bar | ||
| Suction cup shape | Round bell-shaped | ||
| Mounting position | optional | ||
| Suction cup volume | 48 cm³ | ||
| Nominal size | 7 mm | ||
| Height compensator for suction cup | 12,8 mm |
| Note on materials | RoHS-compliant | ||
| Shore hardness | 60 +/- 5 | ||
| Vacuum connection | Female thread G1/4 | ||
| Product weight | 51 g | ||
| Holding force at nominal operating pressure | 220 N | ||
| LABS (PWIS) conformity | VDMA24364-A1-L | ||
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | ||
| Operating pressure | -13,775 psi ... 0 psi | ||
| Symbol | 00991485 | ||
| Position of connection | Top | ||
| Suction cup diameter | 80 mm | ||
| Min. workpiece radius | 45 mm |
