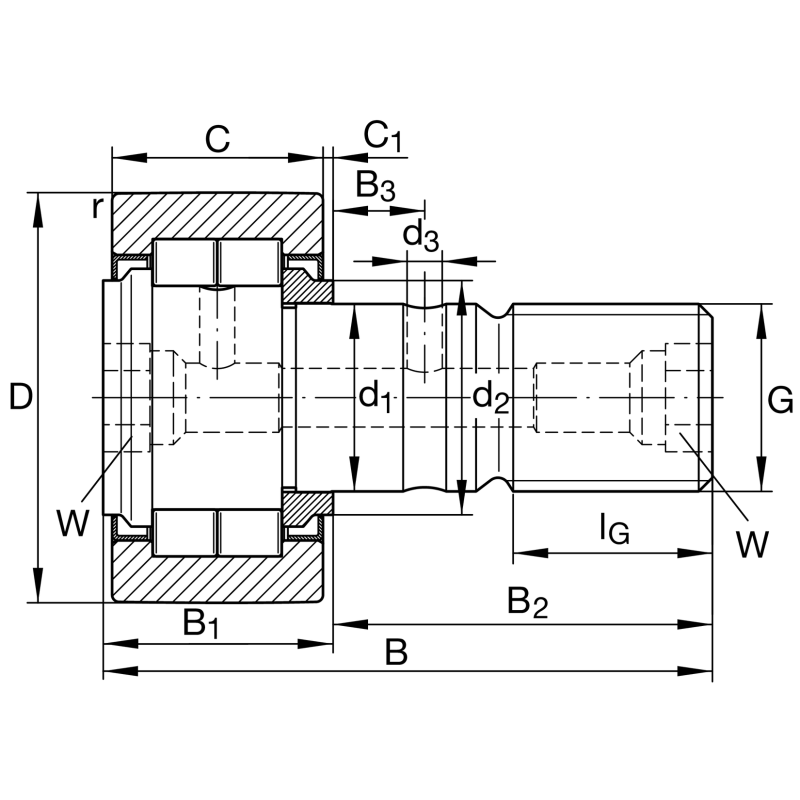

| Outside diameter | D | 47 | mm |
| Width | B | 66 | mm |
| Basic static load rating, radial | C0r | 38,000 | |
| Speed on permanent grease lubrication | nD G | 4,200 | |
| Permissible dynamic load outer ring, radial | Fr per | 16,300 |
| Fit diameter of roller stud / stud | d1 | 20 | mm |
| Basic dynamic load rating, radial | Cr | 28,500 | |
| Fatigue load limit, radial | Cur | 4,950 | |
| Permissible static load, radial | F0r per | 32,500 |
| Witdh of thrust washer | B1 | 25.60 | mm |
| Distance to lubrication hole | Ca | 9 | mm |
| Protrusion outer ring to thrust washer | C1 | 0.80 | mm |
| Stop diameter of thrust washer | d2 | 27 | mm |
| Thread | M20X1,5 | ||
| Width of flats | W | 10 | mm |
| Bolt/stud length effectively | B2 | 40.50 | mm |
| Width, outer ring | C | 24 | mm |
| Minimum chamfer dimension | rmin | 1 | mm |
| Diameter lubrication hole | ds | 4 | mm |
| Thread length | IG | 21 | mm |
| Manufacturer | Part Number |
|---|---|
| NTN | NUKR47 H/3AS (NTN) |
