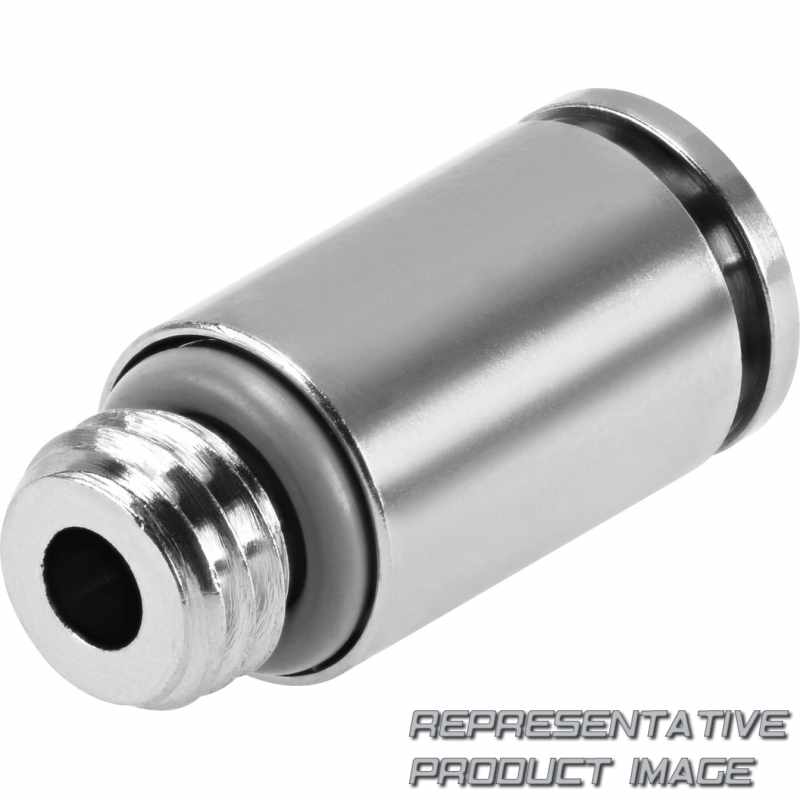

FESTO 578372 push-in fitting

Name: 578372 FESTO
Brand: FESTO
SKU: 662119-en-gbp
Price: 3.13 GBP
Availability: InStock

NPQH-DK-M7-Q4-P10

£3.13 ~~£5.18~~ -39%

50+ pcs. with 1 to 3 days delivery to United States

Specifications

Material tubing clamp component		High-alloy stainless steel
Material release ring		Nickel-plated brass
Material housing		Nickel-plated brass
Pneumatic connection, port 2		For tubing outside diameter of 4 mm
Product weight		5,1 g
Suitable for use with food		See supplementary material information NSF/ANSI 169
Note on operating and pilot medium		Lubricated operation possible
Certificate issuing authority		NSF C0523185
Design		Push-pull principle
Mounting position		optional
Nominal size		3 mm

Material tubing seal		FPM
Material thread seal		FPM
Note on materials		RoHS-compliant
Pneumatic connection, port 1		Male thread M7
Ambient temperature		0 °C ... 150 °C
Corrosion resistance class CRC		3 - high corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Operating pressure complete temperature range		-0,95 bar ... 20 bar
Size of pack		10
Type of seal on screw-in stud		Sealing ring
Size		Standard
