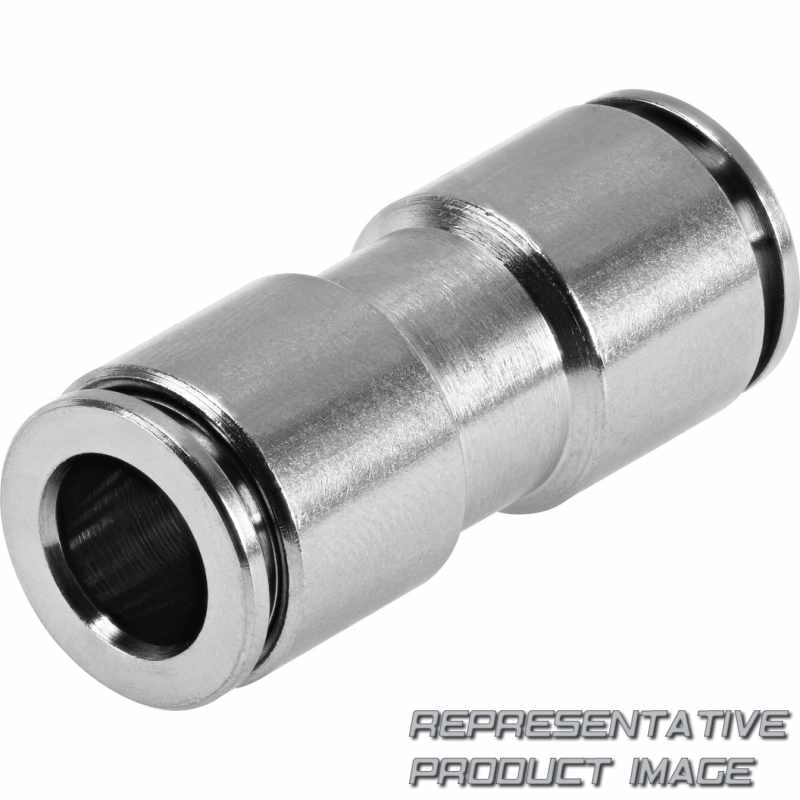

FESTO 578326 connector

Name: 578326 FESTO
Brand: FESTO
SKU: 662297-en-gbp
Price: 4.75 GBP
Availability: InStock

NPQH-D-Q10-E-P10

£4.75 ~~£6.03~~ -21%

50+ pcs. with 1 to 3 days delivery to United States

Specifications

Material tubing clamp component		High-alloy stainless steel
Material release ring		Nickel-plated brass
Note on materials		RoHS-compliant
Pneumatic connection, port 1		For tubing outer diameter of 10 mm
Ambient temperature		0 °C ... 150 °C
Corrosion resistance class CRC		3 - high corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Operating pressure complete temperature range		-0,95 bar ... 20 bar
Size of pack		10
Nominal size		9 mm

Material tubing seal		FPM
Material housing		Nickel-plated brass
Pneumatic connection, port 2		For tubing outside diameter of 10 mm
Product weight		22,8 g
Suitable for use with food		See supplementary material information NSF/ANSI 169
Note on operating and pilot medium		Lubricated operation possible
Certificate issuing authority		NSF C0523185
Design		Push-pull principle
Mounting position		optional
Size		Standard
