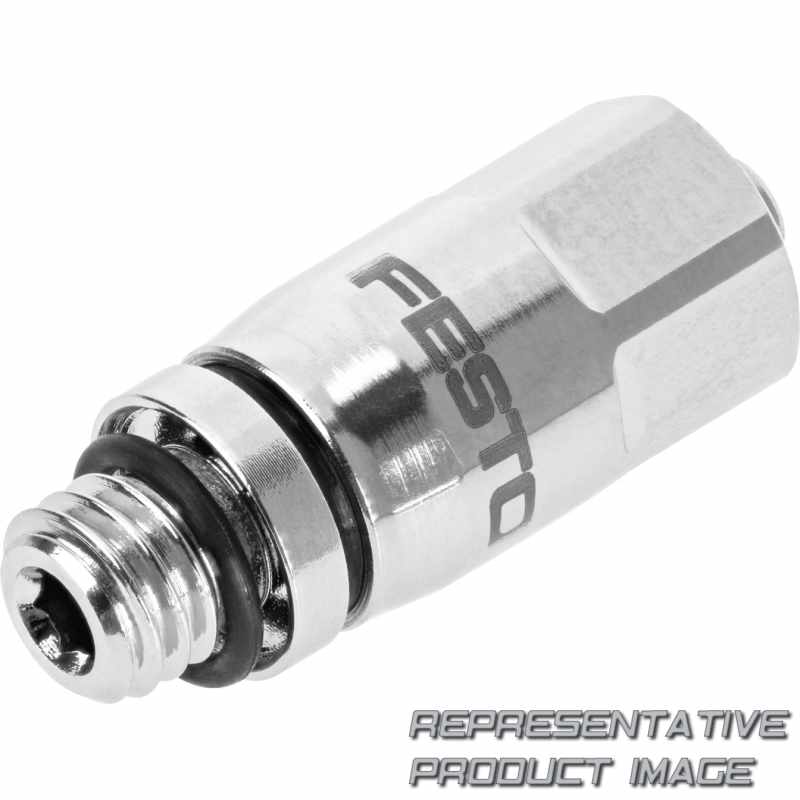

FESTO 1857681 fitting

Name: 1857681 FESTO
Brand: FESTO
SKU: 686128-en-gbp
Price: 16.77 GBP
Availability: InStock

NPCK-C-D-M5-K4

£16.77

2 pcs. with 1 to 3 days delivery to United States

Specifications

Pneumatic connection 1 (M5)	M5
Pneumatic connection 2 (K4)	Terminal connection 4 mm

Material housing		High-alloy stainless steel
Note on materials		RoHS-compliant
Pneumatic connection, port 2		For tubing outside diameter of 4 mm
Product weight		4,2 g
Nominal torque		1,5 Nm
Note on temperature of medium		Water: 0 - 85 °C Water vapour: max. 120 °C
Suitability for the production of Li-ion batteries		Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Note on operating and pilot medium		Lubricated operation possible
Note on operating pressure		Water: 0 – 0.6 MPa, 0 – 6 bar, 0 – 87 psi Water vapour: 0 – 0.15 MPa, 0 – 1.5 bar, 0 – 22 psi
Size of pack		1
Type of seal on screw-in stud		O-ring
Size		Standard

Material sealing ring		EPDM
Material screw-in stud		High-alloy stainless steel
Pneumatic connection, port 1		Male thread M5
Tolerance for nominal tightening torque		± 10%
Ambient temperature		-20 °C ... 120 °C
Suitable for use with food		See supplementary material information
Corrosion resistance class CRC		4 - Very high corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Water vapour
Operating pressure complete temperature range		-0,95 bar ... 12 bar
Mounting position		optional
Nominal size		2 mm
