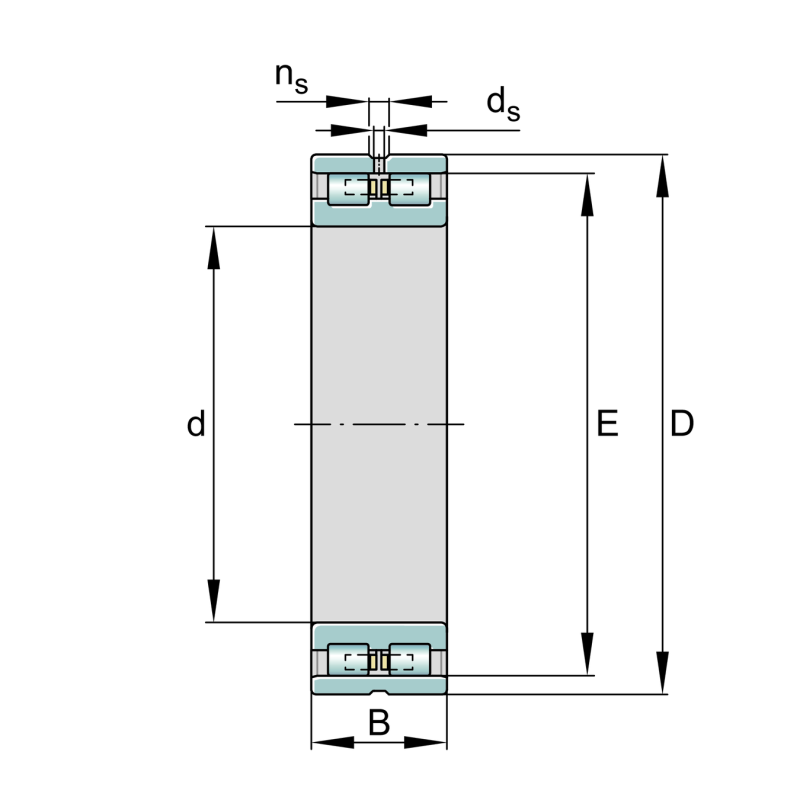

| Bore diameter | d | 160 | mm |
| Width | B | 60 | mm |
| Basic static load rating, radial | C0r | 670,000 | |
| Limiting speed for grease lubrication | nG Grease | 3,400 |
| Outside diameter | D | 240 | mm |
| Basic dynamic load rating, radial | Cr | 375,000 | |
| Fatigue load limit, radial | Cur | 82,000 | |
| Limiting speed for oil lubrication | nG Oil | 4,000 |

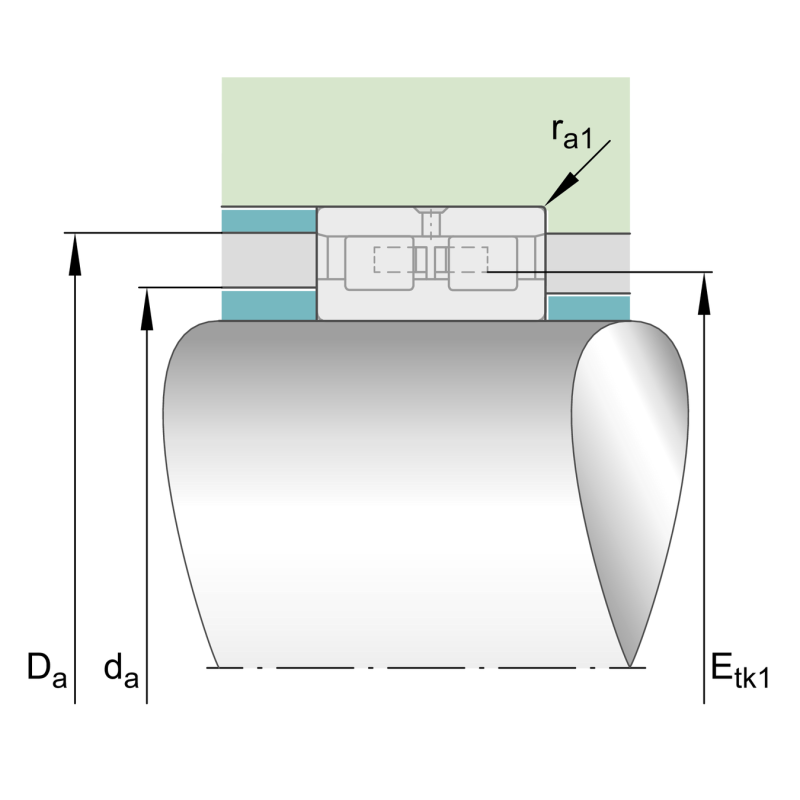

| Diameter shaft shoulder | da | 183 | mm |
| diameter of housing shoulder | Da | 224 | mm |
| Maximum recess radius | ra max | 2.10 | mm |
| diameter shaft shoulder tolerance | h12 | ||
| diameter of housing shoulder tolerance | H12 |
| Minimum chamfer dimension | rmin | 2.10 | mm |
| Width of lubricating groove | ns | 9.50 | mm |

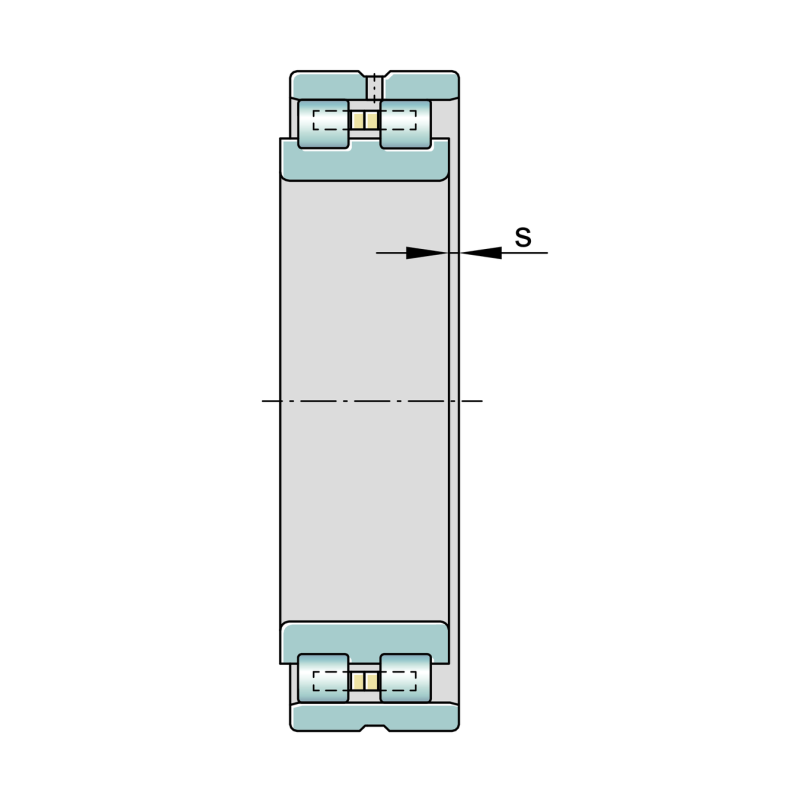

| Axial displacement | s1 | 4.30 | mm |
| Raceway diameter outer ring | E | 219 | mm |
| Diameter lubrication hole | ds | 4.80 | mm |
