| Bore diameter | d | 45 | mm |
| Height | T | 32 | mm |
| Basic static load rating, radial | C0r | 53,000 | |
| Basic static load rating, axial | C0a | 163,000 | |
| Fatigue load limit, axial | Cua | 16,300 | |
| Reference speed | nϑr | 1,900 |
| Outside diameter | D | 58 | mm |
| Basic dynamic load rating, radial | Cr | 31,000 | |
| Basic dynamic load rating, axial | Ca | 59,000 | |
| Fatigue load limit, radial | Cur | 9,400 | |
| Limiting speed | nG | 5,000 |

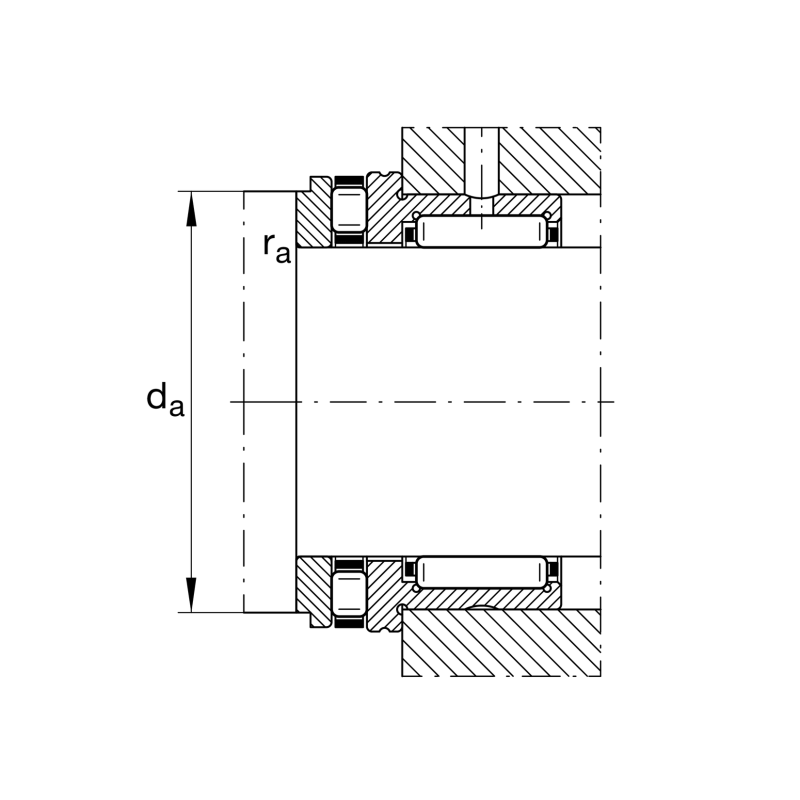

| Mounting dimension shaft shoulder | da | 60.60 | mm |
| Maximum recess radius | ra max | 0.60 | mm |
| Maximum outerside diameter flange | D1 max | 65.20 | mm |
| Distance to lubrication hole | Ca | 9 | mm |
| Minimum chamfer dimension | rmin | 0.60 | mm |
| Width of the axial brearing component | C1 | 14 | mm |
| Bore diameter of shaft washer | dw | 45 | mm |
