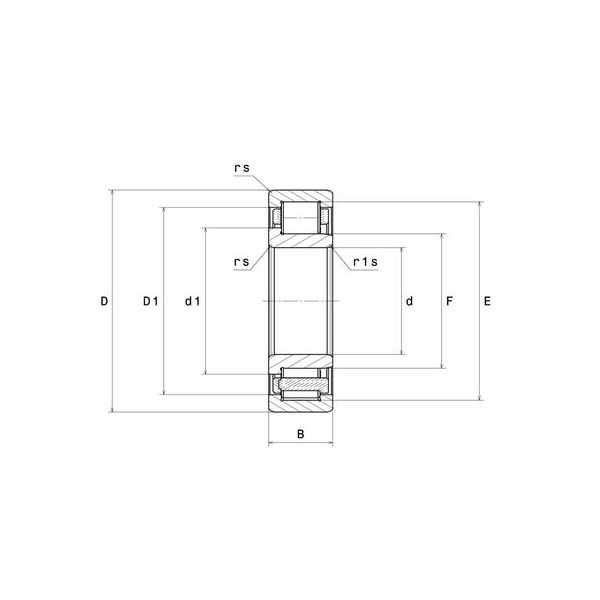

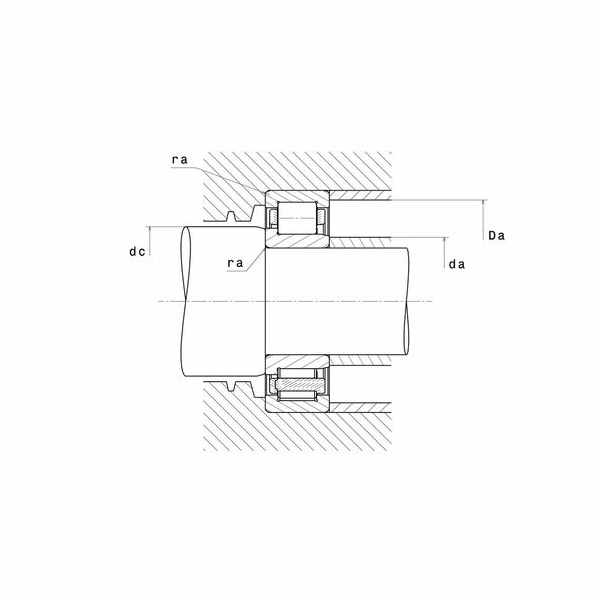

| r1a - Max fillet radius | 2 mm | ||
| Da max - Max shoulder diameter OR | 149 mm | ||
| da min - Min shoulder diameter IR | 86 mm | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nlim - Oil lubrication limit speed | 4900 tr/min | ||
| C0 - Static load | 395 kN | ||
| Radial clearance class | C3 | ||
| rs - Min fillet radius | 2,1 mm | ||
| F - Under roller diameter | 95 mm | ||
| Brand | NTN |
| ra max - Max fillet radius | 2 mm | ||
| dc min - Min inner ring GO diameter | 97 mm | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Grease lubrication limit speed | 3500 tr/min | ||
| Cu - Fatigue limit load | 45,5 kN | ||
| C - Dynamic load | 390 kN | ||
| r1s - Min fillet radius | 2,1 mm | ||
| rNs - Min fillet radius | 2,1 mm | ||
| E - Upper roller diameter | 143 mm |
