| Material electrical contact | Copper alloy Bronze | ||
| Material union nut | PA-reinforced | ||
| Corrosion resistance class CRC | 3 - high corrosion stress | ||
| Ambient temperature | -25 °C ... 85 °C | ||
| Operational voltage range DC | 0 V ... 30 V | ||

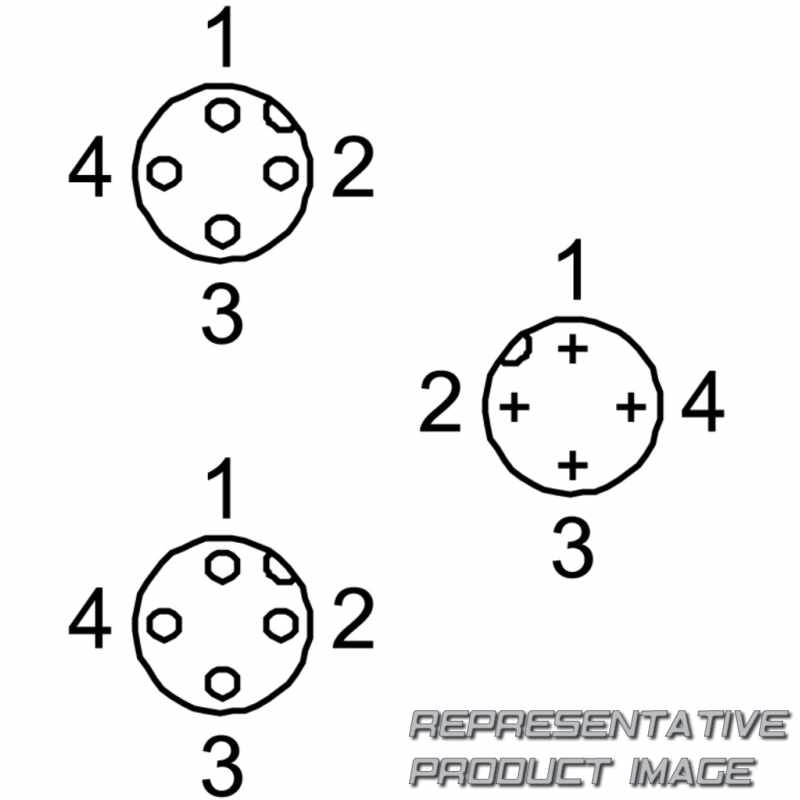

| Electrical connection | 4-pin/4-pin/4-pin A-coded/A-coded/A-coded Socket/socket/plug connector M12x1/M12x1/M12x1 | ||
| Type of mounting | Screw-in | ||
| Explosion protection | The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Material seals | FPM | ||
| Material housing | TPE-U(PU) reinforced Die-cast zinc | ||
| Note on materials | RoHS-compliant | ||
| Degree of protection | IP65 IP67 | ||
| Symbol | 00992230 | ||
| Product weight | 25,5 g | ||
| Frequency of connection | 100 | ||
| Based on standard | EN 61076-2-101 |
