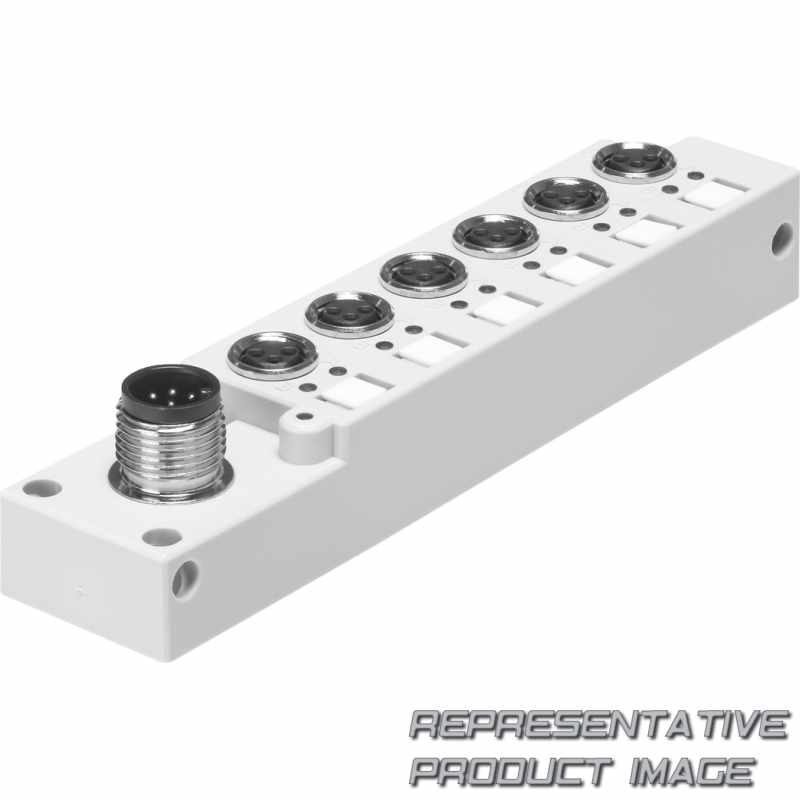

FESTO 574587 multi-pin plug distributor

Name: 574587 FESTO
Brand: FESTO
SKU: 688651-en-gbp
Price: 167.59 GBP
Availability: InStock

NEDU-L6R1-M8G3L-M12G8

£167.59

5 pcs. with 1 to 3 days delivery to United States

Specifications

Mounting Position	optional
Width	24 mm

Weight	74g

Material socket		Nickel-plated brass
Material seals		FPM
Material housing		PBT-reinforced
Note on materials		RoHS-compliant
Degree of protection		IP68
Current rating at 40°C		3 A
Electrical connection 2		Straight plug connector, M12x1, 8-pin
Product weight		74 g
Status indication		Yellow LED
Length		113 mm
Width		24 mm

Material electrical contact		Nickel-plated and gold-plated
Housing colour		grey
Corrosion resistance class CRC		3 - high corrosion stress
Ambient temperature		-20 °C ... 80 °C
Max. current per plug-in position		2 A
Operational voltage range DC		10 V ... 30 V
Electrical connection 1		Straight socket, M8, 3-pin
Mounting position		optional
Ready status indication		Green LED
Height		23 mm
