| Material electrical contact | Gold-plated brass | ||
| Housing colour | Black | ||
| Corrosion resistance class CRC | 1 - Low corrosion stress | ||
| Note on materials | RoHS-compliant | ||
| Note on degree of protection | In assembled state | ||
| Nominal cross section conductor | 0,14 mm² ... 0,5 mm² | ||
| Immunity to surge | 0,8 kV | ||
| Operational voltage range AC | 0 V ... 30 V | ||
| Electrical connection 2, connector system | Screw terminal | ||
| Electrical connection 1, type of mounting | Screw-type lock, size 9 mm A/F | ||
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 | ||
| Electrical connection 1, design | Round | ||
| Cable outlet | Straight | ||
| Conforms to standard | EN 61076-2-104 |
| Material screw-type lock | Nickel-plated brass | ||
| Material housing | PA | ||
| Pollution degree | 3 | ||
| Ambient temperature | -25 °C ... 85 °C | ||
| Degree of protection | IP67 | ||
| Cable diameter | 3,5 mm ... 5 mm | ||
| Current rating at 40°C | 4 A | ||
| Operational voltage range DC | 0 V ... 30 V | ||

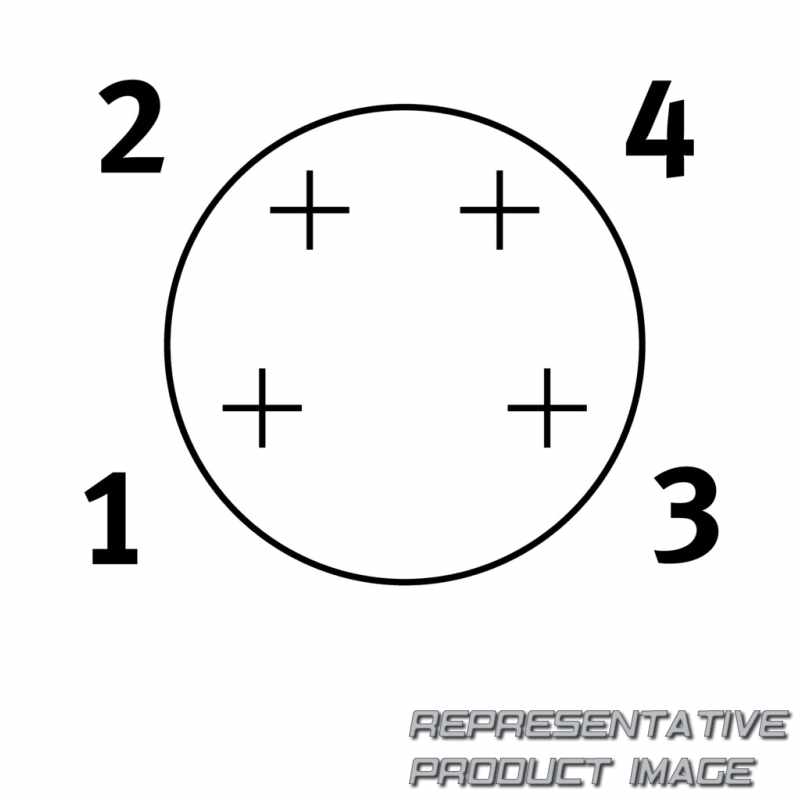

| Electrical connection 1, connection pattern | 00991171 | ||
| Electrical connection 1, number of connections/cores | 4 | ||
| Electrical connection 1, connection type | Plugs | ||
| Product weight | 9,1 g | ||
| Frequency of connection | 100 |
