| Permissible insulating sheath | PVC TPE-E PP | ||
| Material seals | FPM PUR | ||
| Material housing | PA Die-cast zinc Nickel-plated | ||
| Pollution degree | 3 | ||
| Ambient temperature | -25 °C ... 85 °C | ||
| Connection cross section | 0,14 mm² ... 0,34 mm² | ||
| Individual wire diameter | ≥ 0,1 mm | ||
| Immunity to surge | 0,8 kV | ||
| Operational voltage range AC | 0 V ... 32 V | ||

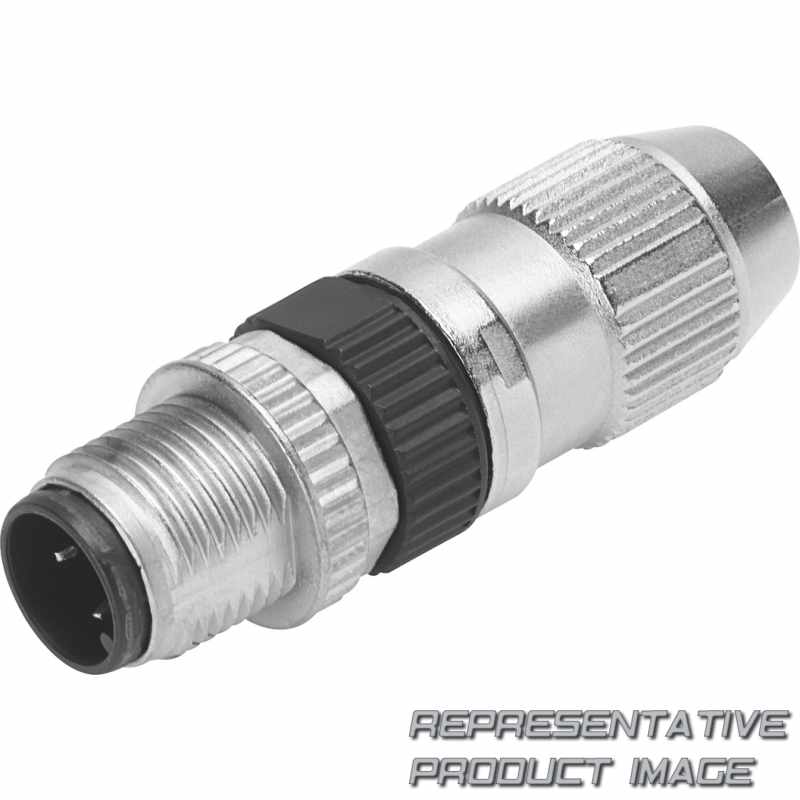

| Electrical connection | 3-pin A-coded M12x1 Straight plug/insulation displacement connector | ||
| Frequency of connection | 3 | ||
| Based on standard | EN 61076-2-101 EN 61984 |
| Material electrical contact | Bronze | ||
| Material screw-type lock | Die-cast zinc, nickel-plated | ||
| Corrosion resistance class CRC | 1 - Low corrosion stress | ||
| Note on materials | RoHS-compliant | ||
| Degree of protection | IP65 IP67 | ||
| Wire diameter | 0,9 mm ... 1,6 mm | ||
| Permissible cable diameter | 2,9 mm ... 5,1 mm | ||
| Current rating at 40°C | 4 A | ||
| Operational voltage range DC | 0 V ... 32 V | ||
| Product weight | 17,5 g | ||
| Approval | c UL us - Recognized (OL) |
