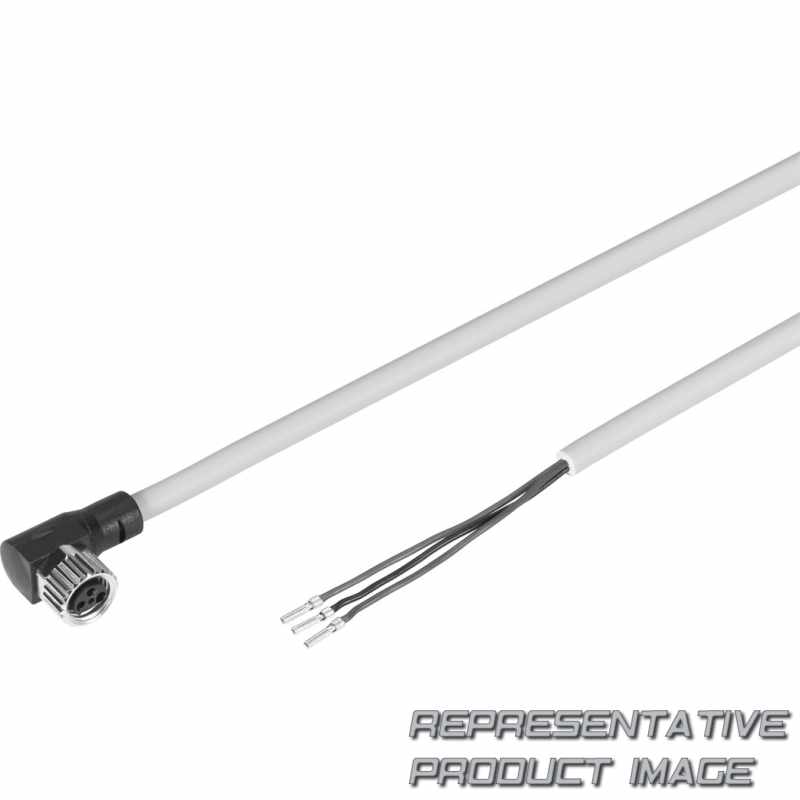

FESTO 8001661 connecting cable

Name: 8001661 FESTO
Brand: FESTO
SKU: 689464-en-gbp
Price: 28.9 GBP
Availability: InStock

NEBU-M8R3-K-5-LE3

£28.90

available with 3 to 7 days delivery to United States

Specifications

Series (NEBU)	Connecting cable, universal
Connection technology left, field device side (M8)	Socket M8x1 A-coded, EN 61076-2-104
Cable outlet left (R)	Rotating
Number of pins/wires on the left (3)	3
Display	None
Cable characteristic (K)	Standard

Cable length [m] (5)	5
Cable identification	With label holder
Wire cross section [mm²]	Standard
Connection technology right, controller side (LE)	Open end
Plug	None
Number of pins/wires on the right (3)	3

Material insulating sheath		PP
Material seals		NBR
Housing colour		Black
Cable sheath colour		grey
Corrosion resistance class CRC		2 - Moderate corrosion stress
Note on materials		RoHS-compliant Free of halogen Free of phosphoric acid ester
CE marking (see declaration of conformity)		To UK regulations for electrical equipment To UK RoHS instructions
Ambient temperature with moving cable		-5 °C ... 70 °C
Special characteristics		Oil resistant
Degree of protection		IP65 IP68 IP69K
Cable structure		3 x 0.25 mm²
Cable diameter		3,8 mm
Bending radius, fixed cable		12 mm
Cable characteristic		Standard
Immunity to surge		1,5 kV
Operational voltage range AC		0 V ... 60 V
Electrical connection 2, used connections/cores		3
Electrical connection 2, connector system		Open end
Electrical connection 2, function		Controller side
Electrical connection 1, type of mounting		Screw-type lock
Electrical connection 1, number of connections/cores		3
Electrical connection 1, cable outlet		Angled, can be aligned in increments of 15°
Electrical connection 1, design		Round
Product weight		123 g
Conforms to standard		Wire colours and connection numbers to EN 60947-5-2

Material electrical contact		Gold-plated copper alloy
Material screw-type lock		Nickel-plated brass
Material housing		TPE-U(PUR)
Material cable sheath		TPE-U(PUR)
Pollution degree		3
LABS (PWIS) conformity		VDMA24364-B2-L
CE mark (see declaration of conformity)		To EU Low Voltage Directive In accordance with EU RoHS Directive
Ambient temperature		-25 °C ... 70 °C
Note on degree of protection		In assembled state
Nominal cross section conductor		0,25 mm²
Cable diameter tolerance		± 0.1 mm
Bending radius, moving cable		39 mm
Test conditions cable		Bending strength: to Festo standard Test conditions on request Energy chain: 5 million cycles, bending radius 75 mm
Cable length		5 m
Current rating at 40°C		0,5 A
Operational voltage range DC		0 V ... 60 V
Electrical connection 2, number of connections/cores		3
Electrical connection 2, connection type		Cable
Electrical connection 1, connection pattern		00991871
Electrical connection 1, used connections/cores		3
Electrical connection 1, connector system		M8x1, A-coded, to EN 61076-2-104
Electrical connection 1, connection type		Socket
Electrical connection 1, function		Field device side
Cable designation		With 2x inscription label holders
Based on standard		EN 61076-2-104
