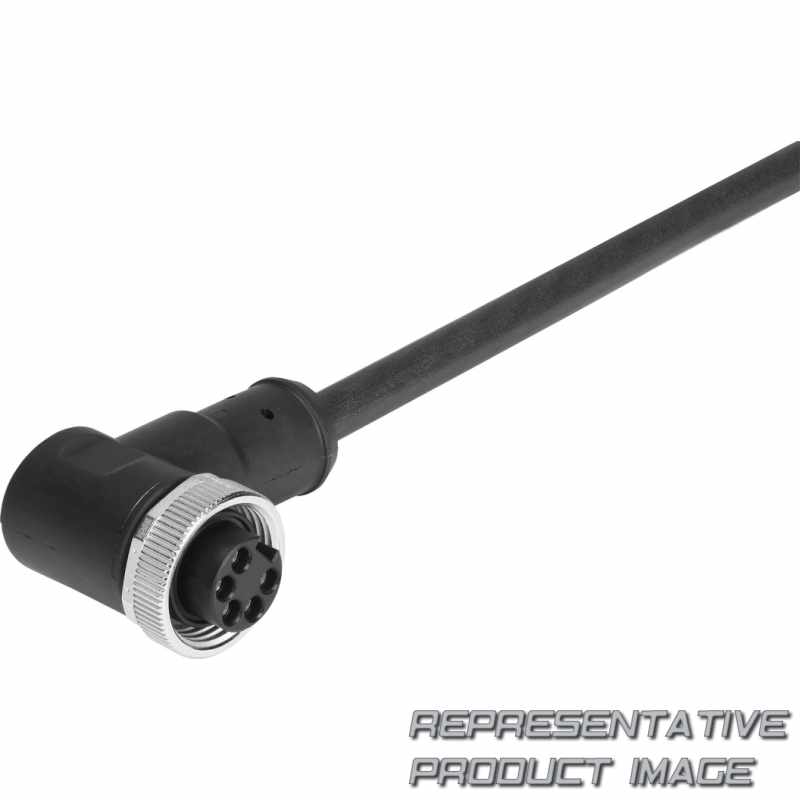

FESTO 573855 power supply socket

Name: 573855 FESTO
Brand: FESTO
SKU: 665019-en-gbp
Price: 70.34 GBP
Availability: InStock

NEBU-G78W5-K-2-N-LE5

£70.34

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (NEBU)	Connecting cable, universal
Connection technology left, field device side (G78)	7/8”
Cable outlet left (W)	Angled
Number of pins/wires on the left (5)	5
Display	None
Cable characteristic (K)	Standard

Cable length [m] (2)	2
Cable identification (N)	Without label holder
Wire cross section [mm²]	Standard
Connection technology right, controller side (LE)	Open end
Plug	None
Number of pins/wires on the right (5)	5

Material electrical contact		Gold-plated brass
Housing colour		Black
Cable sheath colour		Black
Corrosion resistance class CRC		1 - Low corrosion stress
Note on materials		RoHS-compliant
CE mark (see declaration of conformity)		To EU Low Voltage Directive
Note on degree of protection		In assembled state
Nominal cross section conductor		1,5 mm²
Cable diameter tolerance		± 0.2 mm
Bending radius, fixed cable		≥ 65 mm
Cable characteristic		Standard
Immunity to surge		4 kV
Operational voltage range AC		0 V ... 300 V
Electrical connection 2, used connections/cores		5
Electrical connection 2, connector system		Open end
Electrical connection 2, function		Controller side
Electrical connection 1, type of mounting		Screw-type lock
Electrical connection 1, number of connections/cores		5
Electrical connection 1, note on cable outlet		Cable outlet not in line with the industry standard. Matched with the CPX protective cover.
Electrical connection 1, connection type		Socket
Electrical connection 1, function		Field device side
Frequency of connection		100
Based on standard		NFPA/T3.5.29 R1-2007

Material screw-type lock		Nickel-plated brass
Material housing		TPE-U(PUR)
Material cable sheath		TPE-U(PUR)
Pollution degree		3
CE marking (see declaration of conformity)		To UK regulations for electrical equipment
Ambient temperature		-20 °C ... 80 °C
Degree of protection		IP65 IP67
Cable structure		5 x 1.5 mm²
Cable diameter		8,7 mm
Test conditions cable		Test conditions on request
Cable length		2 m
Current rating at 40°C		9 A
Operational voltage range DC		0 V ... 300 V
Electrical connection 2, number of connections/cores		5
Electrical connection 2, connection type		Cable
Electrical connection 1, connection pattern		00995652
Electrical connection 1, used connections/cores		5

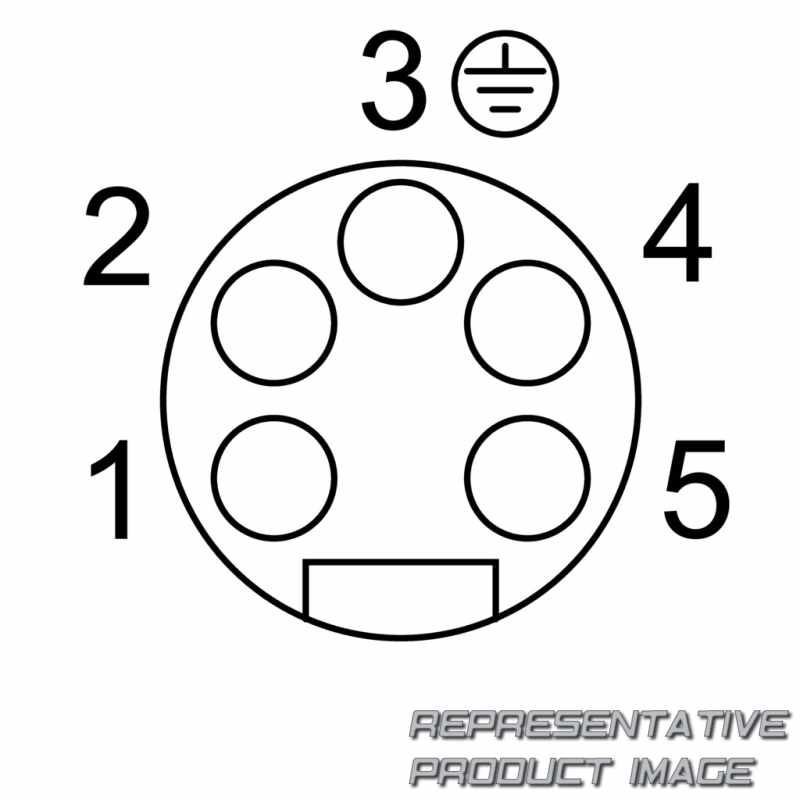

Electrical connection 1, connector system		G7/8 coded to NFPA/T3.5.29 R1-2007
Electrical connection 1, cable outlet		Angled
Electrical connection 1, design		Round
Product weight		680 g
Cable designation		Without inscription label holder
