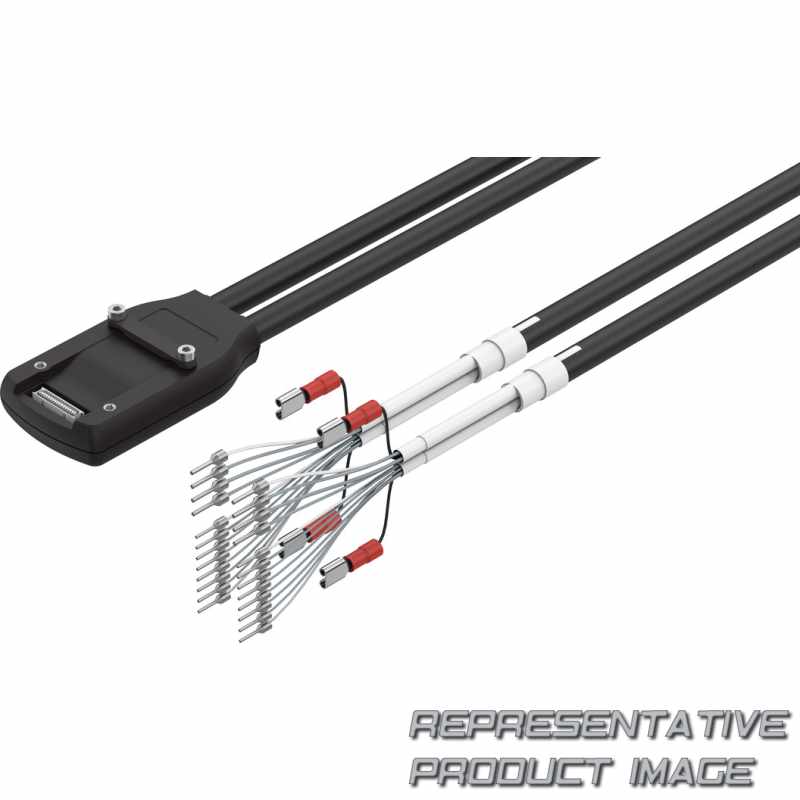

FESTO 8113307 motor cable

Name: 8113307 FESTO
Brand: FESTO
SKU: 686722-en-gbp
Price: 413.76 GBP
Availability: InStock

NEBM-SF1W31-EH-5-Q15N-LE28

£413.76

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (NEBM)	Connecting cable
Connection technology left, field device side (SF1)	Plug type F1
Cable outlet left (W)	Angled
Number of pins/wires on the left (31)	31
Cable characteristic (E)	Suitable for energy chains
Cable design (H)	Hybrid cable
Cable length (5)	5 m

Wire cross section [mm²] (Q15)	0.35
Cable identification (N)	Without label holder
Connection technology right, controller side (LE)	Open end
Cable outlet right	None
Number of pins/wires on the right (28)	28
Additional connector function	None
Pin allocation	Standard

Material electrical contact		Copper alloy, tin-plated
Material housing		PA
Material cable sheath		TPE-U(PUR)
Pollution degree		1
LABS (PWIS) conformity		VDMA24364 zone III
CE mark (see declaration of conformity)		In accordance with EU RoHS Directive
Ambient temperature with moving cable		-5 °C ... 70 °C
Note on degree of protection		In assembled state
Wire ends		Wire end sleeve
Cable structure		1 x (6 x 0.35 mm²) + 2 x (4 x 0.15 mm²)
Cable diameter		9,9 mm
Bending radius, fixed cable		≥ 49,5 mm
Cable characteristic		Suitable for energy chains
Immunity to surge		0,25 kV
Nominal operating voltage DC		24 V
Electrical connection 2, used connections/cores		28
Electrical connection 2, connector system		Open end
Electrical connection 2, function		Controller side
Electrical connection 1, type of mounting		Snap-in locking
Electrical connection 1, number of connections/cores		31
Electrical connection 1, note on cable outlet		90°
Electrical connection 1, connection type		Plugs
Electrical connection 1, function		Field device side
Frequency of connection		30
Conforms to standard		DIN 47100

Housing colour		Black
Cable sheath colour		Black
Corrosion resistance class CRC		1 - Low corrosion stress
Note on materials		RoHS-compliant
CE marking (see declaration of conformity)		To UK RoHS instructions
Storage temperature		-25 °C ... 55 °C
Ambient temperature		-20 °C ... 75 °C
Degree of protection		IP20
Nominal cross section conductor		0,15 mm²
Cable diameter tolerance		± 0.2 mm
Bending radius, moving cable		≥ 74,25 mm
Test conditions cable		Test conditions on request
Cable length		5 m
Current rating at 40°C		0,5 A
Operational voltage range DC		0 V ... 50 V
Electrical connection 2, number of connections/cores		28
Electrical connection 2, connection type		Cable
Electrical connection 1, connection pattern		00995929
Electrical connection 1, used connections/cores		31
Electrical connection 1, connector system		Connection pattern F1
Electrical connection 1, cable outlet		Angled
Electrical connection 1, design		Angular
Product weight		1.480 g
Cable designation		Without inscription label holder
