FESTO 8066683 connecting cable

Name: 8066683 FESTO
Brand: FESTO
SKU: 672233-en-gbp
Price: 11.8 GBP
Availability: SoldOut

NEBB-M12W5-P-5-LE4

£11.80

Limited stock only available on quotation

Specifications

Series (NEBB)	Connecting cable
Connection technology left, field device side (M12)	Socket M12x1 A-coded, EN 61076-2-101
Cable outlet left (W)	Angled
Number of pins/wires on the left (5)	5

Cable characteristic (P)	Basic
Cable length [m] (5)	5
Connection technology right, controller side (LE)	Open end
Number of pins/wires on the right (4)	4

Material insulating sheath		PVC
Material seals		NBR
Housing colour		Black
Cable sheath colour		grey
Corrosion resistance class CRC		2 - Moderate corrosion stress
Note on materials		RoHS-compliant
LABS (PWIS) conformity		VDMA24364-B2-L
CE mark (see declaration of conformity)		To EU Low Voltage Directive In accordance with EU RoHS Directive
Note on degree of protection		In assembled state
Wire ends		Sheath removed Cut off bluntly
Cable structure		4 x 0.25 mm²
Bending radius, fixed cable		≥ 14 mm
Cable characteristic		For static applications
Immunity to surge		2,5 kV
Operational voltage range AC		0 V ... 250 V
Electrical connection 2, used connections/cores		4
Electrical connection 2, connector system		Open end
Electrical connection 2, function		Controller side
Electrical connection 1, type of mounting		Screw-type lock with A/F13
Electrical connection 1, number of connections/cores		5
Electrical connection 1, cable outlet		Angled
Electrical connection 1, design		Round
Cable designation		With label holder
Conforms to standard		Wire colours and connection numbers to EN 60947-5-2 EN 61076-2-101

Material electrical contact		Gold-plated copper alloy
Material screw-type lock		Nickel-plated brass
Material housing		TPE-U(PU)
Material cable sheath		PVC
Pollution degree		3
Cleanroom class		Class 4 according to ISO 14644-1
CE marking (see declaration of conformity)		To UK regulations for electrical equipment To UK RoHS instructions
Ambient temperature		-25 °C ... 70 °C
Degree of protection		IP65 IP68 IP69K
Nominal cross section conductor		0,25 mm²
Cable diameter		4,5 mm
Test conditions cable		Test conditions on request
Cable length		5 m
Current rating at 40°C		4 A
Operational voltage range DC		0 V ... 250 V
Electrical connection 2, number of connections/cores		4
Electrical connection 2, connection type		Cable

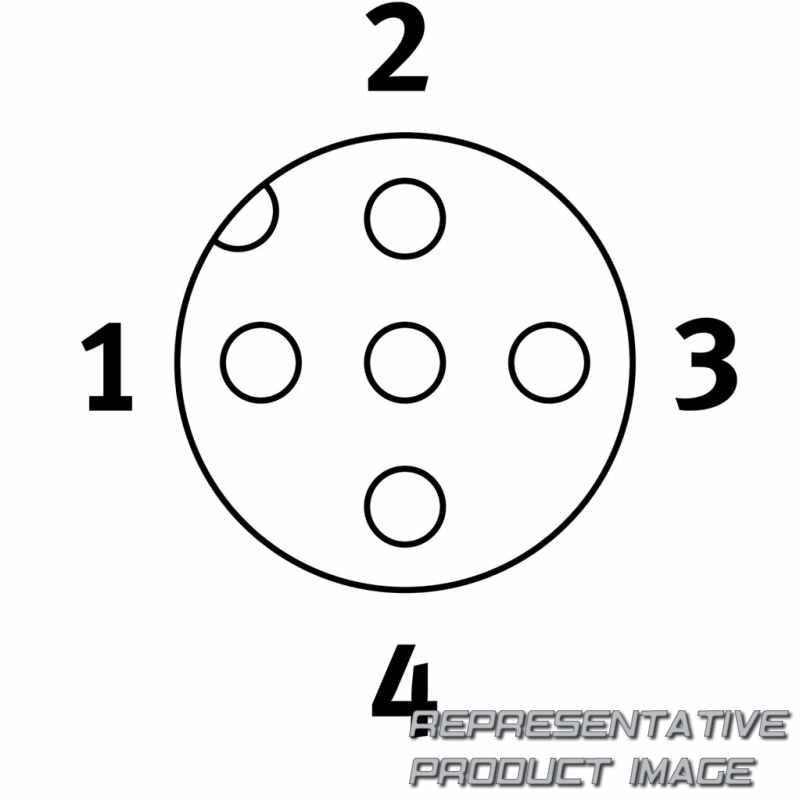

Electrical connection 1, connection pattern		00991861
Electrical connection 1, used connections/cores		4
Electrical connection 1, connector system		M12x1, A-coded to EN 61076-2-101
Electrical connection 1, connection type		Socket
Electrical connection 1, function		Field device side
Explosion protection		The information in the certificate must be observed! Zone 2 (ATEX) Zone 22 (ATEX)
