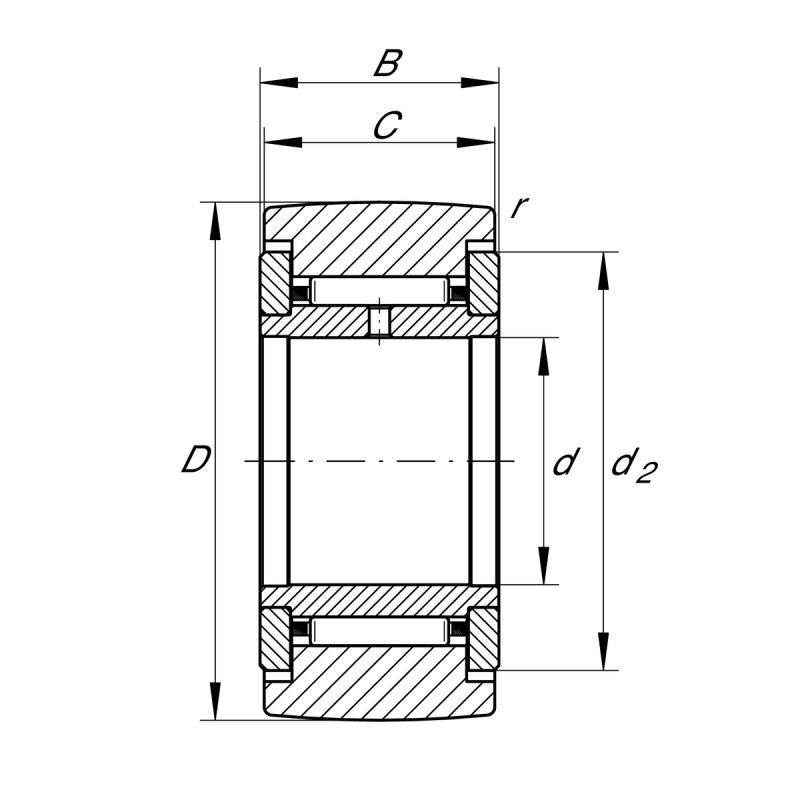

| Radius of outer ring outside profile | R | 500 | mm |
| Outside diameter of thrust washer | d2 | 19 | mm |
| Minimum chamfer dimension | rmin | 0.30 | mm |
| Width, outer ring | C | 14 | mm |
| Permissible dynamic load outer ring, radial | Fr per | 6,700 | |
| Speed on permanent grease lubrication | nD G | 7,500 | |
| Basic static load rating, radial | C0r | 6,700 | |
| Width, inner ring | Bi | 15 | mm |
| Bore diameter | d | 8 | mm |
| Permissible static load, radial | F0r per | 6,700 | |
| Fatigue load limit, radial | Cur | 940 | N |
| Basic dynamic load rating, radial | Cr | 5,500 | |
| Outside diameter | D | 24 | mm |
| Manufacturer | Part Number |
|---|---|
| NTN | NATR8 (NTN) |
| IKO | NART8-R (IKO) |
| McGill Manufacturing | MCYRR-8 |
| SKF | NATD8 |
| Torrington | FYCJLC-824 |
| Jalman Precision | NART8R |
| SKF | NATR8 (SKF) |
| NSK | FYCJ-8R |
| GPZ Bearings | NATD8 |
| Alfatec | HTAR8 |
| SKF | NATD8A |
| KOYO | CXM8RM |
